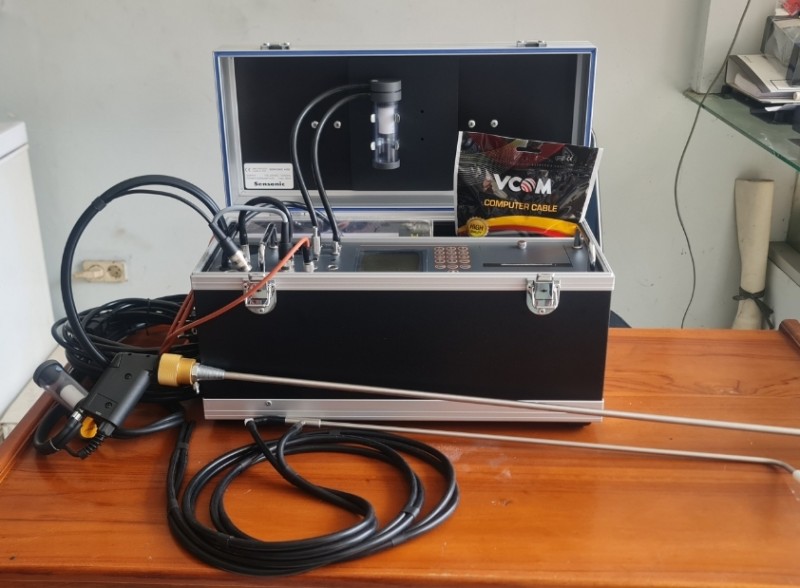

Perbesar Gambar| Fungsi: alat ukur kadar gas yang keluar dari cerobong asap industri |
| (alat uji emisi sumber tidak bergerak) |
| Specification : | |||||
| GAS | Range | Resolution | Sensor type | ||
| ▪ | O2 | : | 0-25% | 0.01% | Electrochemical |
| ▪ | CO | : | 0-20.000 ppm | 1 ppm | IR Sensor |
| ▪ | CO2 | : | 0-100% | 0.01% | Electrochemical |
| ▪ | NO | : | 0-5.000 ppm | 1 ppm | Electrochemical |
| ▪ | NO2 | : | 0-1.000 ppm | 1 ppm | Electrochemical |
| ▪ | SO2 | : | 0-5.000 ppm | 1 ppm | Electrochemical |
| ▪ | H2S | : | 0-1.000 ppm | 1 ppm | Electrochemical |
| ▪ | Probe | : | Length 750mm 800° C |
| ▪ | Display | : | LCD |
| ▪ | Dimensions | : | (W x H x D): 470 x 310 x 160mm |
| ▪ | Weight | : | 12 ÷ 12.8kg |
| ▪ | Operating Temp | : | Temperature : 10 ÷ 50°C, RH: 5 ÷ 90% |
| ▪ | Battery | : | 12V/2.2Ah, Lead-acid Rechargeable |
| ▪ | Analog outputs | : | Two current (0/4 ÷ 20mA) |
| ▪ | PC Interface | : | RS232C |
| ▪ | Power supply | : | input | max power consumption: 90 ÷ 240VAC | 70W |
| ▪ | Paper Printer | : | Roll of 58mm thermal Printer |
