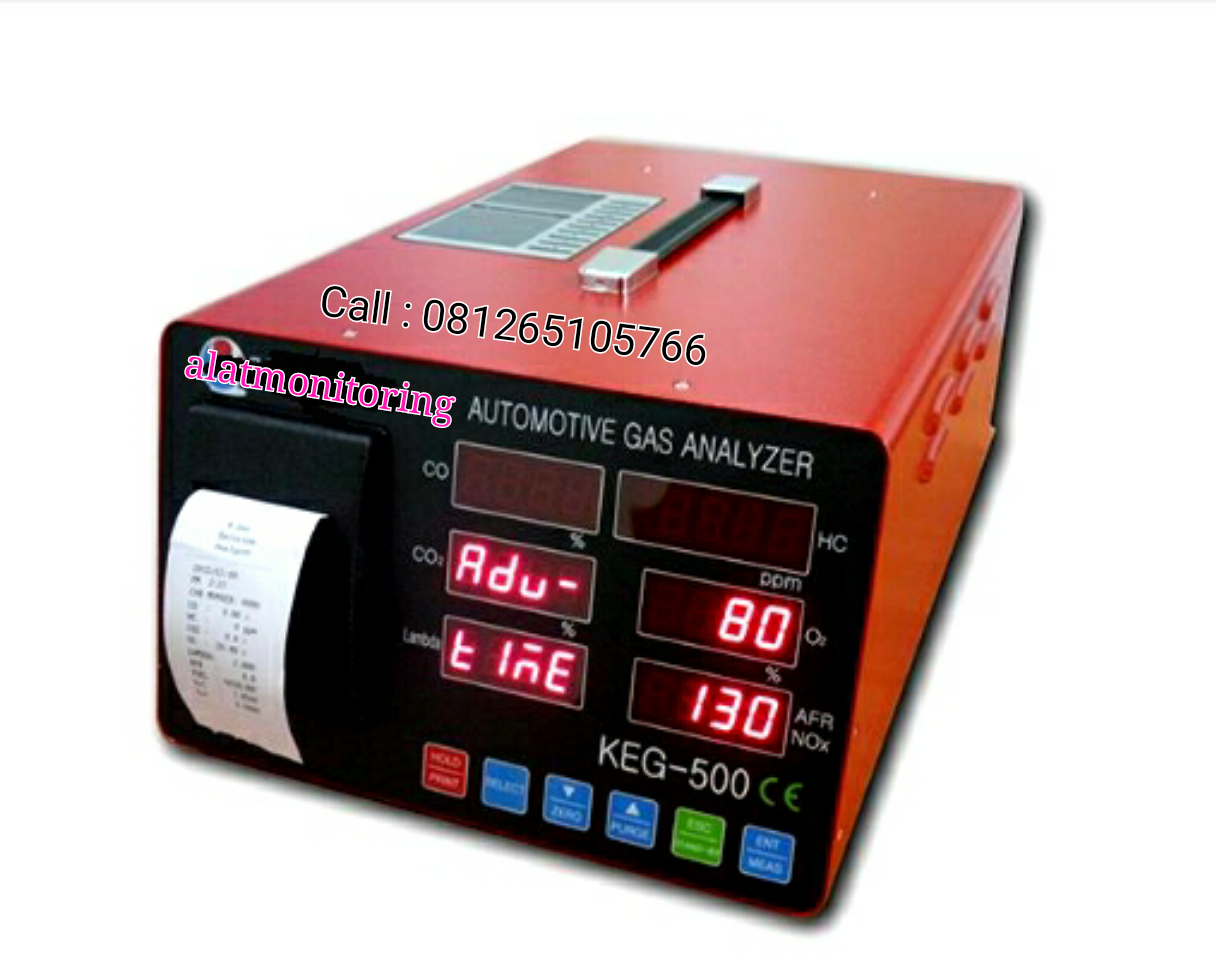

Perbesar Gambar| Fungsi: untuk Alat uji emisi gas kendaraan yang berbahan bakar bensin. |
| Spesifikasi : | ||||
| ▪ | Parameters | Range | Resolution | |
| O2 | : | 0 - 25% | 0,01% | |
| CO | : | 0 - 10% | 0,1% | |
| CO2 | : | 0 - 20% | 0,01% | |
| HC | : | 0 - 10.000 ppm | 1 ppm | |
| NOx | : | 0 - 5.000 ppm | 1 ppm | |
| AFR | : | 0,0 - 99,0 | 0,01 | |
| λ | : | 0 - 2.000 | 0.001 | |
| ▪ | Display | : | 4 digit 7 segment LED | |
| ▪ | Flow rate | : | 4 - 6 L/min | |
| ▪ | Method | : | HC,CO, CO₂- NDIR(Non-dispersive infrared) O₂, NOx-Electro Chemical |
| ▪ | Repeatability | : | Less than ± 2% FS |
| ▪ | Response Time | : | Within 10 seconds (more than 90%), |
| ▪ | Warming up time | : | 2 - 8 minutes |
| ▪ | Flow rate | : | 4 - 6 L/min |
| ▪ | Power supply | : | 220V |
| ▪ | Printer tipe | : | Built-in thermal printer |
| ▪ | Accessories | : | Probe, Probe house, Fuse, Leak test cap, Spare filter |
| : | Power cord, RS232, Build-in printer, Printer paper | ||
| : | Communication cable, RPM & Oil temp meter |
