Perbesar Gambar| Spesifikasi : | |
| ▪ Display | : 3-1/2 digit LCD |
| ▪ Wavelength Range | : 340-1000nm |
| ▪ Wavelength Width | : 10nm in entire region |
| ▪ Wavelength Accuracy | : ±2nm at 365 and 546nm |
| ▪ Wavelength Scale | : 2nm scale |
| ▪ Spectroscope | : Sigle beam, |
| Diffraction grating 1200 lines/nm | |
| ▪ Stray Radiant Energy | : <0.5%T typical at 340nm with |
| appropriate light filter | |
| ▪ Photometric Range | : 0-1.999ABS |
| : 0-100%T | |
| : 0-1999C | |
| ▪ Photometric Accuracy | : ±2%T |
| ▪ Detector | : High sensitivity silicon photocell |
| ▪ Light Source | : Long-life Tungsten lamp with lens |
| ▪ Sample Volume | : 1.0ml(Minimum) |
| ▪ Sample Container | : Square cuvette 10x10x45(L) mm |
| : Round cuvette 10(D)x12(OD)x105(L)mm | |
| ▪ Optical Path Length | : 10mm |
| ▪ Power Requirements | : 100-240VAC, 50/60Hz, 15W |
| ▪ Dimensions | : 270(W)×285(D)×155(H)nm |
| ▪ Weight | : Net 4.8kg (Main body) |
| Standard Accessories : | |
| ▪ Square cuvette 2 pcs | |
| ▪ Round Cuvette 10 pcs | |
| ▪ Cuvette Holder 1 pcs | |
| ▪ Power Code 1 pcs | |
| ▪ Vinyl Dust Cover 1 pcs | |
| ▪ Operation Manual 1 copy |

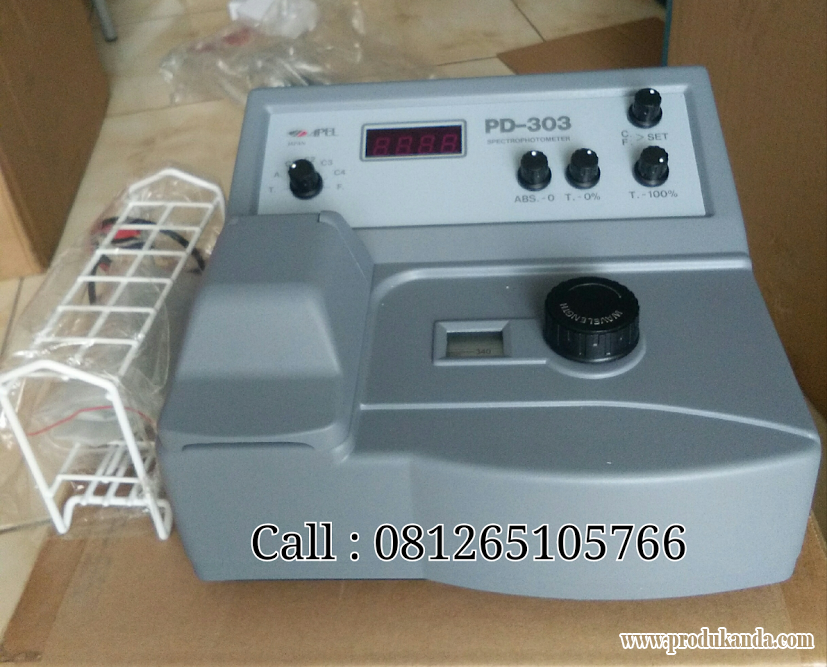

SPECTROPHOTOMETER PD-303
