| Spesifikasi Alat : |
|

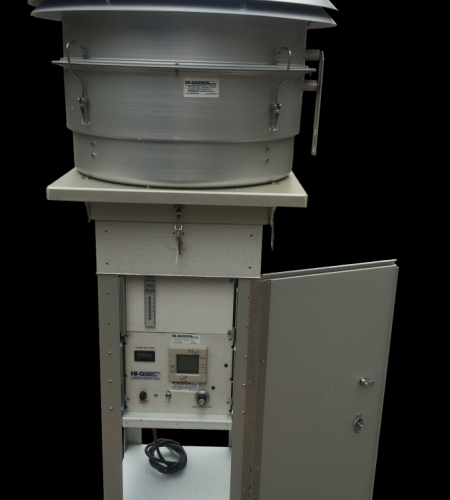

| ▪ TSP HVAS |
: 230 VAC, 3-Stage, Brushless Blower Manual speed Control |
| |
outdoor High Volume Air Sampler, with total volume LPM |
| ▪ PM10 Inlet |
: PM10 size selective sampling inlet High Volume Air Sampler |
| |
Overal head dimension 19" x 28" Dia PM-10 Style 8" x 10" |
| |
Filter Paper Holder without Mass Flow probe (RTD) Mounting |
| |
hole 8" x 10" removable Filter Paper Cartridge Holder |
| ▪ PM2.5 Retrofit |
: PM2.5 Retrofit High Vol Inlet Complete Kit to Retrofit Existing |
| |
40 CFM PM10 System to PM 2.5 Micron system. |
| |
PM 2.5 Inlet Sist Inside PM-10 Inlet |
| ▪ Timer |
: 7 Day, 24 hours Programmable Electronic timer with two |
| |
independent Control Circuit Electronic, resettable hours & |
| |
tenth of hours, LCD red out 5 year internal battery. |
| ▪ Compound |
: Dow corning release compound (5.3 oz tube) used for |
| |
PM10 shim Plate |
| ▪ Pressure recorder |
: 230VAC, 50 Hz continuous flow pressure recorder, 24 hours, |
| |
range 0-10 H2O Accuracy : 2% full scale Average |
| |
response time : 1-5 seconds |
| ▪ Filter Paper |
: Glass Fiber Filter Paper 8" x 10" Size 100 sheets per box (included) |
| ▪ Housing |
: Anodized Aluminium outdoor shelter with lockable media roof |
| ▪ Cal. Flow range |
: 10-50 CFM (cfm or lpm, unit calibration upon request) |
| ▪ Unit Net weight |
: ± 50 lbs, 44 lbs size selective inlet |
| ▪ Shipping weight |
: 20"x20"x50"@58lbs (box 1) |
| |
TSP HVAS 32"x32"x26"@53lbs (box 2) size selective inlet carton |
| ▪ Power |
: 230 VAC, 50/60Hz |
