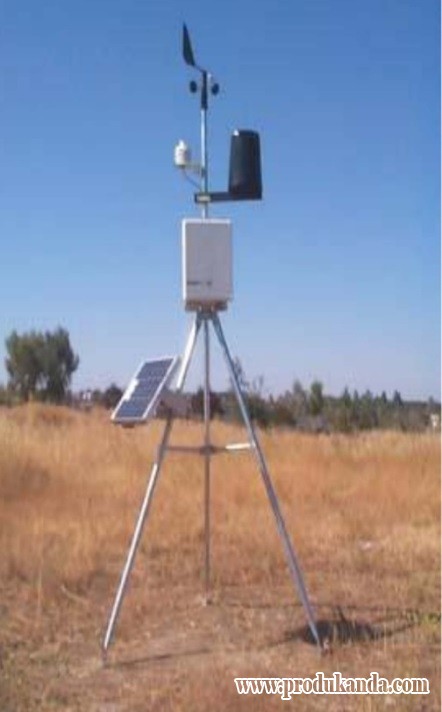

Fungsi : Alat ukur kondisi Cuaca. |
Specification : | |
▪ Data Acquisition Module | : Reporting Unit , english or meteric |
Operating power 10-16 VDC | |
Power consumption 60 mA Max. | |
Serial port 9 pin d-sub connector | |
Memory, 128 KB RAM | |
▪ Operating Temp | : Tranducer, -40 to 60 ˚C |
▪ Timekeeping | : Format: MM/DD and HH:MM |
Accuracy : ± 30 second/month | |
▪ Barometeric Pressure | : Range: 28.25 to 30.75 inches Hg |
Measurement span : 2.50 inches Hg | |
Resolution: ±0.01 inch Hg or ± 0.3 hpa | |
Altitude offset : 0 to 10.000 feet | |
Absolute Accuracy : 0.05 inches Hg | |
▪ Wind Speed | : Range : 0 to 125 mph (0-57 m/s) |
Resolution : >0.1 mph | |
Accuracy : ± 1mph | |
Starting threshold : 0.8 mph | |
▪ Wind Direction | : Range : 0-360 ˚ |
Resolution : >1% | |
Accuracy : ± 1 ˚F | |
▪ Relative Humidity | : Range : 0-100% RH |
Accuracy : ± 3% (10-90%) | |
▪ Air Temperature | : -40 to 60 ˚C |
▪ Rain Gauge | : Max Rate Unlimited |
Tip 0,254mm of rain fall |
