Perbesar Gambar| Fungsi: alat ukur debu PM 2,5 PM 10, HCHO (Formalin), CO (Carbon Monoxide) didalam ruangan. |
| Spesifikasi Alat : | |
| 1. Particle Concentration 6 Channel | : 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0μm |
| ▪ Counting Eficiency | : 50% at 0.3 μm; 100% for particles > 0.45 μm |
| ▪ Flow rate | : 2.83 l/min (0.1 ft³/min), controlled by internal pump |
| ▪ Light source | : Laser class 3B, wave length 780 nm, 90 mW |
| ▪ Sample Inlet | : Isokinetic probe |
| 2. Particle mas conversion | : 2.5 μm, 10.0μm |
| ▪ Minimal range | : 0 µg/m3 |
| ▪ Max range | : 2000 µg/m3 |
| ▪ Resolution | : 1 µg/m3 |
| 3. HCHO (Formaldehyde) range | : 0.01~5 ppm |
| ▪ Accuracy | : 5% |
| ▪ Resolution | : 1 ppm |
| 4. CO (Carbon Monoxide) Range | : 10~1000 ppm |
| ▪ Accuracy | : 5% |
| ▪ Resolution | : 1 ppm |
| 5. Air Temperature Range | : 0~50 °C |
| ▪ Accuracy | : 0,5 °C |
| 6. Relative Humidity Range | : 0~100 % |
| ▪ Accuracy (40-60%) | : 3% |
| 7. Dew Point Temperature Range | : 0~50 °C |
| ▪ Accuracy (10-40%) | : 0,5 °C |
| 8. Wet Bulb Temperature Range | : 0~80 °C |
| ▪ Accuracy (10-40%) | : ±1 °C |
| 9. Main Unit | |
| ▪ Display | : LCD |
| ▪ Data storage | : 5,000 data records on the internal flash memory |
| ▪ Function | : Maximum, minimum and average display |
| measured value hold function, alarm function, | |
| language selection, °C/°F switch. | |
| ▪ Power Supply | : Battery type: NiMH battery |
| ▪ Weight | : 0,35 kg |

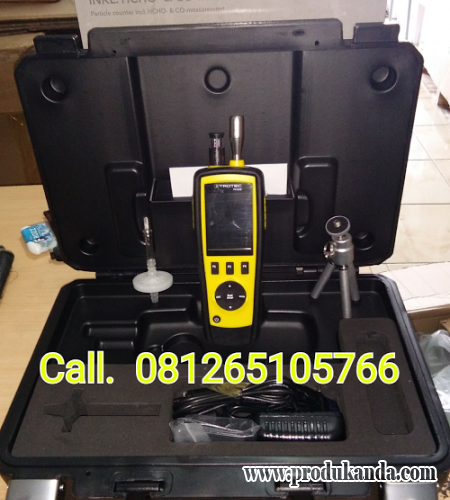

| 10. Complete Unit |
| 1. Main Unit |
| 2. Mini Tripod, |
| 3. Zero filter and connection hose, |
| 4. Battery charger, USB cable and Software, Manual books, |
| 5. Certificate Calibration, Carrying case |
