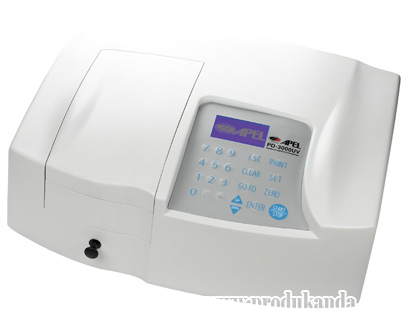

Perbesar Gambar| Fungsi: Alat untuk mengukur suatu bahan absorben dengan menggunakan sinar spectrum dengan |
| panjang gelombang. |
| Specification : | |
| ▪ Wavelength range | : 190 nm to 1000 nm |
| ▪ Wavelength Width | : 5 nm |
| ▪ Wavelength accuracy | : ± 1 nm |
| ▪ Wavelength repeatability | : ± 0.5 nm |
| ▪ Optical system | : Single beam, grating system, |
| auto-scanning (using PC) | |
| ▪ Stray radiant energy | : < 0.1%T (at 220nm and 360nm) |
| ▪ Display | : 128 x 64 LCD display |
| ▪ Photometric range | : -0.3 to 3 ABS |
| : 0.0 to 200 %T | |
| : 0.0 to 9999 C (0 - 9999F) | |
| ▪ Auto Zero | : Equipped |
| ▪ Drift | : ≦ 0.002 A/hour after warm up |
| ▪ Detector | : High sensitivity silicon photocell |
| ▪ Light source | : Halogen lamp, Deuterium lamp |
| ▪ Standard Sample holder | : 4 position, 10 mm x 10 mm Square cuvette |
| ▪ Printer interface | : Parallel port |
| ▪ Data output | : USB |
| ▪ Power Requirement | : 220 VAC, 50/60 Hz |
| ▪ Dimensions (Body) | : 466 (W) x 395 (D) x 200 (H) mm |
| ▪ Weight | : Net 15.5 kg (main body) |
| Complete Unit : | |
| ▪ Square glass cuvette | : 4 pcs |
| ▪ Square quartz cuvette | : 2 pcs |
| ▪ Power cord | : 1 pc |
| ▪ Software CD-ROM | : 1 set (CD-rom, USB key, USB Cable |
| : Software manual) | |
| ▪ Fuse (3A) | : 1 pc |
| ▪ Vinyl dust cover | : 1 pc |
| ▪ Operation manual | : 1 copy |
