Perbesar Gambar| (Aplikasi di dalam dan di luar ruangan) |
| Spesifikasi: | ||

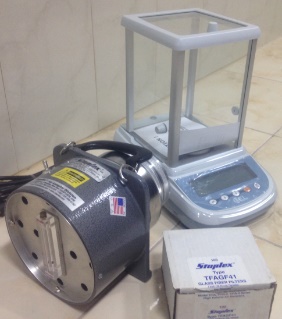

| A. Portable High Volume Air Sampler (HVS) | ||
| ▪ Motor/Pump | : | Brushed, 2-Stage Blower. |
| ▪ Main Housing | : | Sturdy Lightweight Dural |
| ▪ Max Flow Rate | : | 40 CFM |
| ▪ Unit Net Weight | : | 9 Lbs |
| ▪ Power Supply | : | 230 VAC, 50/60 Hz, 5.5 Amp |
| ▪ Filter holder | : | 4 inch diameter |
| ▪ Filter paper | : | 4 inch diameter |
| ▪ Complete Unit | : | Filter paper 100 sheet (glass fiber) |
| : | Tripod | |
| : | Sheet plate for Tripod : 30 x 25 cm | |
| B. Filter Paper | ||
| ▪ Type | : | Glass Fiber Filter paper |
| ▪ Diameter | : | 4" (10,16cm) |
| ▪ Qty | : | (100/box) |
| C. Pengering Filter dengan Oven (OF-02G) | ||
| ▪ Temperature | ||
| - Range | : | Amb. +10˚C to 250 ˚C |
| - Accuracy | : | +1˚C at 100 ˚C |
| - Uniformity | : | +1˚C at 100 ˚C |
| - Heat up time | : | +100 ˚C |
| ▪ Dimension | ||
| - Interior (WxDxH) | : | 400 x 360 x 420mm |
| - Exterior (WxDxH) | : | 577 x 642 x 760mm |
| - Nett weigth | : | 53kg |
| ▪ Electrical Requirments | : | 230V |
| D. Tempat mendinginkan filter | ||
| ▪ Type Non Vacum, Diameter | : | 30 cm |
| ▪ Plate porcelin | : | 30 cm Diameter |
| E. Timbangan Analitik | ||
| ▪ Capacity | : | 220g |
| ▪ Resolution | : | 0.0001 g |
| ▪ Readability | : | 0,0001 g |
| ▪ Reproduccibility | : | 0,0001 g |
| ▪ Linearity | : | ± 0,2 mg |
| ▪ Calibration | : | Internal |
| ▪ Pan Size | : | Ø 80 mm |
| ▪ Size /weight | : | 345 x 215 x 345mm / 6,2 kg |
| ▪ RS232 | : | Provided |
| ▪ Display | : | LCD display with backlight |
| ▪ Power | : | 230V |
| F. Pinset | ||
