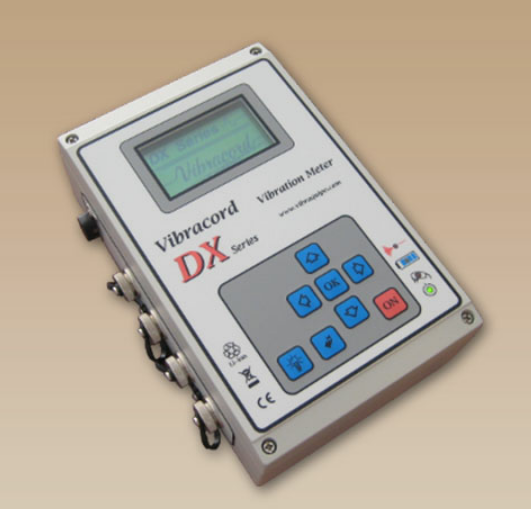

PORTABLE VIBRATION BLASTING MONITOR 4DX-SERIES
- Harga：
- Nego
- Brand：
- VIBRACORD
- Pembelian Minimal：
- 1 Unit
- Pembelian Maksimal：
- 50 Unit
- Pengiriman：
- 1 sejak pembayaran
- Pembelian Maksimal：
- 50 Unit
- Diperbarui：
- 07-04-2022 13:47
- Dilihat：
- 35.808 Kali
PORTABLE VIBRATION BLASTING MONITOR 4DX-SERIES
PORTABLE VIBRATION BLASTING MonITOR 4DX-SERIES
| |
| Fungsi : Alat pengukur getaran pada Ledakan / Blasting (Ledakan batuan di pertambangan, industri |
| Semen dan pemasangan tiang pancang bangunan) |
| |
| Specification : |
|
| ▪ Number of Channel |
: 4 channel |
| ▪ Sample rate |
: 2048 SPS |
| ▪ Analog to Digital Converter |
: 16 bits |
| ▪ Frequency range |
: 2 ~250 Hz |
| ▪ Record time |
: 1, 2, 4, 8, 16, 32 s |
| ▪ Trigger mode |
: Automatic : Manual : External |
| ▪ Ports for data transfer (OPTIONAL) |
: Ethernet (LAN) |
| |
: USB (External disk) : GSM/GPRS |
| ▪ Record and data transfer |
: Internal disk , Printer, SMS |
| |
messages , WEB server , FTP |
| |
server, e-mail |
| ▪ Data storage memory |
: 200 MB |
| ▪ External power supply |
: 12V |
| ▪ Intenal power supply |
: Li-Ion rechargeable battery |
| ▪ Autonomy |
: 20hours (continuous use) |
| ▪ Visualization |
: Visualization Graphic LCD |
| |
screen 128x64 pixels |
| ▪ Keyboard |
: 8 keys |
| ▪ Dimensions |
: 180x220x70 mm |
| ▪ Weight |
: 1,9 kg (unit only) |
| ▪ Operating temperature |
: -10 ºC to 50 ºC |
| ▪ Storage temperature |
: -20 ºC to 60 ºC |
| |
|
| ▪ Complete Unit : |
| 01. Seismographs for blasting |
| 02. One three-axis bloks geophones |
| 03. One microphone for air-wave recording |
| 04. External power supply |
| 05. Analysis program |
| 06. One Spike |
| 07. User Manual, |
| 08. Certificate Calibration |
|
