| Spesifikasi : |
|
|
| a. Parameter |
|
|
| ▪ |
Nitrit |
: |
0 - 1500 mg/l (50 test) |
| ▪ |
Nitrat |
: |
0 - 11 mg/l (50 test) |
| ▪ |
Ammonia |
: |
0 - 1 mg/l (50 test) |
| ▪ |
Phosphate |
: |
0 - 80 mg/l (50 test) |
| ▪ |
COD |
: |
0 - 150 mg/l (50 test) |
| |
|
: |
0 - 1.500 mg/l (50 test) |
| ▪ |
Cyanida |
: |
0.01 - 0.5 mg/l (50 test) |
| b. Photometer |
|
|
| ▪ |
Panjang Gelombang |
: |
390-950nm |
| |
|
: |
18 panjang gelombang : |
| |
|
|
410nm, 435nm, 460nm, 485nm, 510nm, |
| |
|
|
535nm, 560nm, 585nm, 610nm, 645nm, |
| |
|
|
680nm, 705nm, 730nm, 760nm, 810nm |
| |
|
|
860nm, 900nm dan 940nm |
| ▪ |
Parameter yang diukur |
: |
Lebih 140 parameter (Option) |
| ▪ |
Koneksi |
: |
WiFI, Bluetooth 4.2 |
| ▪ |
Layar Monitor |
: |
5.5" Layar Sentuh |
| ▪ |
Kalibrasi |
: |
Internal kalibrasi |
| ▪ |
Memory |
: |
Mampu menyimpan lebih 5000 data |
| ▪ |
Pengaturan Jam/waktu |
: |
Selalu terkini (Real-Time-Clock) |
| ▪ |
Mati otomatis |
: |
10 menit jika tidak dioperasikan, |
| |
|
|
dapat disetting sesuai kebutuhan |
| ▪ |
Panduan operator |
: |
Tersedia di Photometer |
| ▪ |
Sumber tenaga |
: |
8500 mA Li-Lo-Battery |
| ▪ |
Pilihan Bahasa |
: |
Tersedia Bahasa Indonesia |

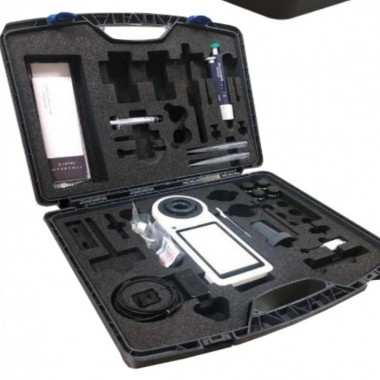

| c. Complete Unit |
|
|
| |
Carrying case |
: |
1 unit |
| |
Glass Cuvette |
: |
24mm / 10ml g (4 pcs) |
| |
Light shield |
: |
1 pcs |
| |
Vial adapter |
: |
24mm (1 pcs) |
| |
Brush pemberih cuvette |
: |
10.5cm (1 pcs) |
| |
Bluetooth USB dongle |
: |
1 pcs |
| |
Charger with cable |
: |
1 set |
| |
Thermoreactor |
|
|
| |
▪ Reactor type |
: |
Dry temperature control device |
| |
▪ Number of vial cells |
: |
16 cells shafts for reaction cell 16mm |
| |
▪ Temperature setting |
: |
100˚C, 120˚C, 150˚C, via fixed programs, and 50˚C to 199˚C user setting |
| |
▪ Heating rate 25˚C to |
: |
100˚C approx. 5 min. : 120˚C approx. 6 min. |
| |
|
: |
150˚C approx.9 min. : 165˚C approx.11 min. : 199˚C approx. 15 min. |
| |
▪ Pre-stored programs |
: |
165˚C / 20 min. : 150˚C / 2 hour : 150˚C/ 20 min. : 120˚C / 2 hour |
| |
|
: |
120˚C / 1 hour : 120˚C / 30 min. : 100˚C / 1 hour |
| |
▪ Programmable |
: |
50˚C to 199˚C (Temp range) |
| |
▪ Programmable time range |
: |
0-18 hours, Audio signal and heating stopped when the time expired |
| |
▪ Temperature correction |
: |
±9˚C adjustment for thermoblock |
| |
▪ Power supply |
: |
220 VAC ±10%, 50/60 Hz |
| |
▪ Power consumption |
: |
250 W |
| |
▪ Dimension |
: |
320 x 210x 103 mm (Lx W x H) |
| |
▪ Weight |
: |
Approx. 3kg |
