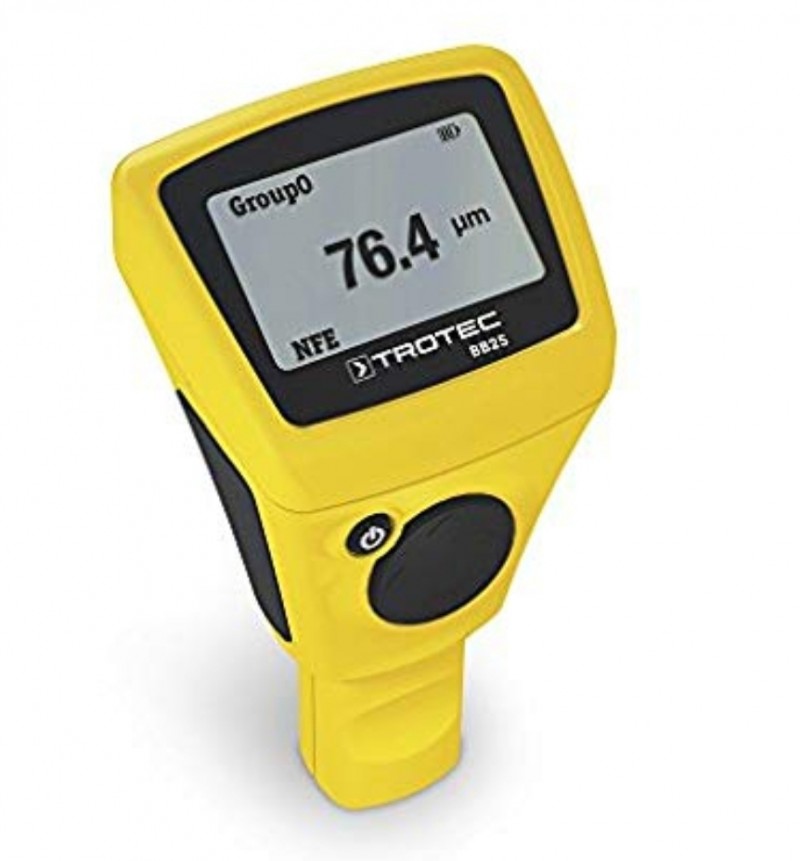

COATING THICKNESS METER TROTEC BB-25

Produk Lain

Detail Produk

Fungs: alat ukur ketebalan cat.

Specification :

▪ Dual sensor for measuring the thickness of non-magnetic layers on each magnetic

and non - magnetic metals

▪ Wide measuring range from 0 to 2,000 µm

▪ Error indicator incorrect measurement

▪ Simple zero -point calibration for rapid deployment and high precision

▪ Memory for up to 2,500 measurements

▪ All memory values and groups directly stored in the unit

▪ Bluetooth interface for PC data transfer

▪ Simple one-handed operation

▪ The light adjustable backlight

▪ Automatic switch off

Technical details:

▪ Sensor : Ferromagnetic Substrates

▪ Operating principle	: magnetic induction
▪ Guaranteed tolerance	: 0 ~ 1000 µm (± 2 % ±2 µm); 1000 ~ 2000 µm (± 3.5 %)
▪ Bending radius minimum	: (Surface) 1.5 mm
▪ Minimum measured surface	: Ø 7 mm
▪ Critical base layer thickness	: 0.5 μm
▪ Measuring range	: 0 bis 2,000 μm
▪ Accuracy	: 0 ~ 100 µm (0.1 µm); 100 ~ 1000 µm (1 µm);
	1000 ~ 2000 µm (0.01 mm)

Sensor : NE-metallic substrates

▪ Operating principle	: eddy current
▪ Guaranteed tolerance	: 0 ~ 1000 µm (± 2 % ±2 µm); 1000 ~ 2000 µm (± 3.5 %)
▪ Bending radius minimum	: (Surface) 3 mm
▪ Minimum measured surface	: Ø 5 mm
▪ Critical base layer thickness	: 0.3 μm
▪ Measuring range	: 0 bis 2,000 μm
▪ Accuracy	: 0 ~ 100 µm (0.1 µm); 100 ~ 1000 µm (1 µm);
	1000 ~ 2000 µm (0.01 mm)
▪ Functions	: error indicator for measurement error, adaptive backlight,
	auto power off, Bluetooth
▪ Dimensions	: 113,5 x 54 x 27 mm
▪ Weight	: 110 g (incl. batteries)
