| Parameters yang diukur : |
|
| ▪ LEL (Low Explosive Limit) |
: 0-100 ppm |
| ▪ O2 (Oxygen) |
: 25% vol |
| ▪ CO (Carbon Monoxide) |
: 0-999 ppm |
| ▪ SO2 (Sulfur Dioxide) |
: 0-20 ppm |
| ▪ H2S (Hydrogen Sulfide) |
: 0-100 ppm |
| ▪ CO2 (Carbon Dioxide) |
: 0.00-5.00% vol |
| ▪ NO2 (Nitrogen Dioxide) |
: 0-100 ppm |
| ▪ O3 (Ozone) |
: 0-100 ppm |
| ▪ NH3 (Ammonia) |
: 0-100 ppm |
| ▪ HCHO (Formaldehyde) |
: 0.0-5.0 ppm |
| ▪ VOC (Volatic Organic Compound) |
: 0.0-5.00 ppm |
| |
|
| Spesifikasi alat : |
|
| a. Multigas 5 parameter |
|
| ▪ Parameters |
: LEL, O2, CO, H2S and SO2 |
| ▪ Size / weight |
: 13.2 x 8.1 x 4.0 cm / 340 gr |
| ▪ Temp. Operating |
: (-20 to 50° C) |
| ▪ Humidity |
: 10 - 90% RH (Non-condensing) |
| ▪ Power Source |
: 4 “AA” Alkaline or NiMH Recharger Pack |
| |
(charge with NiMH Battery Pack) |
| ▪ Battery Life |
: 24 Hr. Alkaline or 15 Hr. NiMH |
| ▪ Sound |
: 98db @ 15” (30cm) |
| ▪ Approval |
|
| UL 7WA6 |
|
| For Class 1, Division 1, Groups A, B, C and D Hazardous locations |
| when used with approved alkaline batteries or rechargeable |
| battery pack. IP65 |
|
| Temp code: T4, -20° C to 50° C |
|
| CЄ 0891 Єx II 2 G |
|
| Ex d ia IIC T4, Gb, IP65 |
|
| -20° C to 50° C |
|
| DEMKO 12 ATEX 1102012 |
|
|
|
| b. CO2 and NO2 Detection |
|
| ▪ Resolution |
: CO2: 1ppm |
| |
NO2: 0.1ppm |
| ▪ Sensor |
: Infrared and Electrochemical Sensor |
| ▪ Alarm |
: Audible--buzzer with ≥75dB audible |
| |
Visible--flashing red LED, ≥20m visiblec |
| ▪ Display |
: Liquid Crystal Display(LCD) |
| ▪ Response time |
: CO2: ≤50S ( T90 ) |
| |
NO2: ≤45s (T90) |
| ▪ Size/weight |
: 130*66*30mm, 500g |
| |
|
| c. Ozone Meter |
|
| ▪ Resolution |
: 0.02ppm, 0.03ppm |
| ▪ Sensor |
: Membrapor/CITY Electrochemical Sensor |
| ▪ Response time |
: ≤45s(T90) |
| ▪ Alarms |
: Audible--buzzer with ≥75dB audible |
| |
: Visible--flashing red LED, ≥20m visible |
| ▪ Display |
: Liquid crystal display (LCD) |
| ▪ Size/weight |
: 105*54*32mm/450g |
| |
|
| d. Ammonia Meter |
|
| ▪ Resolution |
: 1 ppm |
| ▪ Sensor |
: Electrochemical Sensor |
| ▪ Response time |
: ≤45s(T90) |
| ▪ Alarms |
: Audible--buzzer with ≥75dB audible |
| |
: Visible--flashing red LED, ≥20m visible |
| ▪ Display |
: Liquid crystal display (LCD) |
| ▪ Size/weight |
: 105*54*32mm/450g |
| |
|
| |
|
| e. VOC/HCHO Meter |
|
| ▪ Resolution |
: 1ppm(VOC) |
| |
: 0.01 ppm or mg/m3 (HCHO) |
| ▪ Respon Time |
: < 2 minutes |
| ▪ Display |
: Large, LCD Screen |
| ▪ Keys |
: Three button operation |
| ▪ Power |
: 7.4 V / 1200 mAh |
| ▪ Charge Time |
: Approx 2 hours |
| |
|

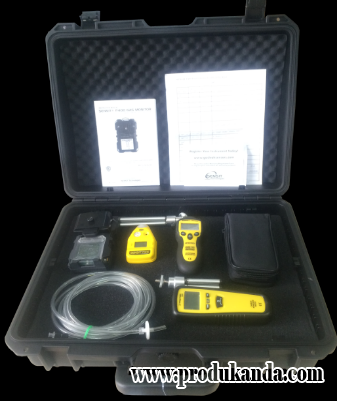

| Perlengkapan Alat : |
|
| 1. Tas tahan benturan |
|
| 2. Buku petunjuk penggunaan alat |
|
| 3. Selang sampel |
|
| 4. Battre alat |
|
| 5. USB Cable |
|
