DIESEL PARTICULATE MONITOR DPM-7204

  • Merk : Haz-Dust
  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 10 Unit
  • Pengiriman : 2 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 2.738 Kali
  • Pembaruan : 25-03-2026 13:08
Dapatkan Spesifikasi Harga DIESEL PARTICULATE MONITOR DPM-7204 Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

Produk Detail

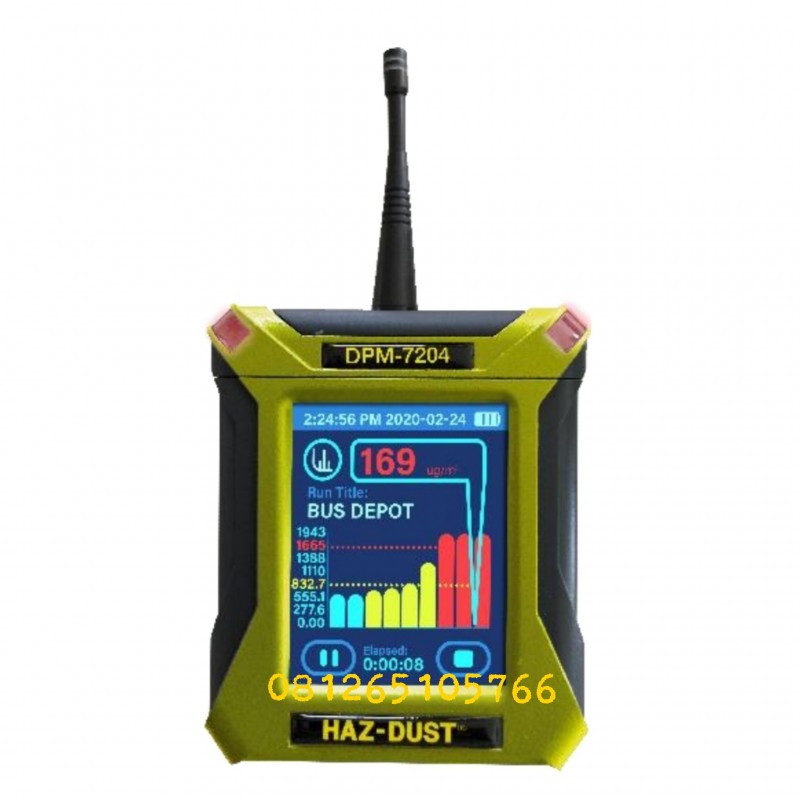

DIESEL PARTICULATE MONITOR  DPM-7204

Fungsi : Alat ukur kadar debu  yang keluar dari asap berbahan bakar solar secara personal

Spesifikasi :

▪ Application : Diesel Engine Surveys


: Combustion Efficiency


: Mining


: Transportation (i.e. bus depots, trucking, freight)


: Survey tool for MSHA and NIOSH Compliance Programs
▪ Display : Alpha-numeric LCD-4 line 20 character mg/m3
▪ Operations : Four key splash proof membrane switch
▪ Calibration : NIOSH gravimetric reference NIST traceable


: SAE fine test dust
▪ Accuracy : ±10% to filter gravimetric
▪ Particulate Range: : <1 to 10µm
▪ Precision : ± 2 µg/m³
▪ Sample flow rate : 1.0 to 3.3 liter/minute


: (recomended flow 1.7 LPM)
▪ Filter Cassette : 37mm disposable
▪ Recording time : 1 second to 21 weeks
▪ sampling rate : 1 second, 1 minute and 10 minute interval
▪ Concentration range : 1-20.000 µg/m³
▪ Data storage : 21,500 data points
▪ Security code : 4 digit combinations
▪ Time storage : ≥ 5 year
▪ Real time clock : Hours, minutee, second, day, month & year
▪ Data display : Concentration in µg/m³ & TWA, MAX, MIN, STEL, date & time
▪ Digital output : RS-232
▪ Software : Window TM driven
▪ Power : NiMH Rechargeable Battery
▪ Operating time : ≥ 8 hours
▪ Charging : 10-12 hours
▪ Dimension/ weight : 5.5" x 3.25 x 2.75" (Case) / 2 lbs


: 1.75" x 1.5" (sensor)

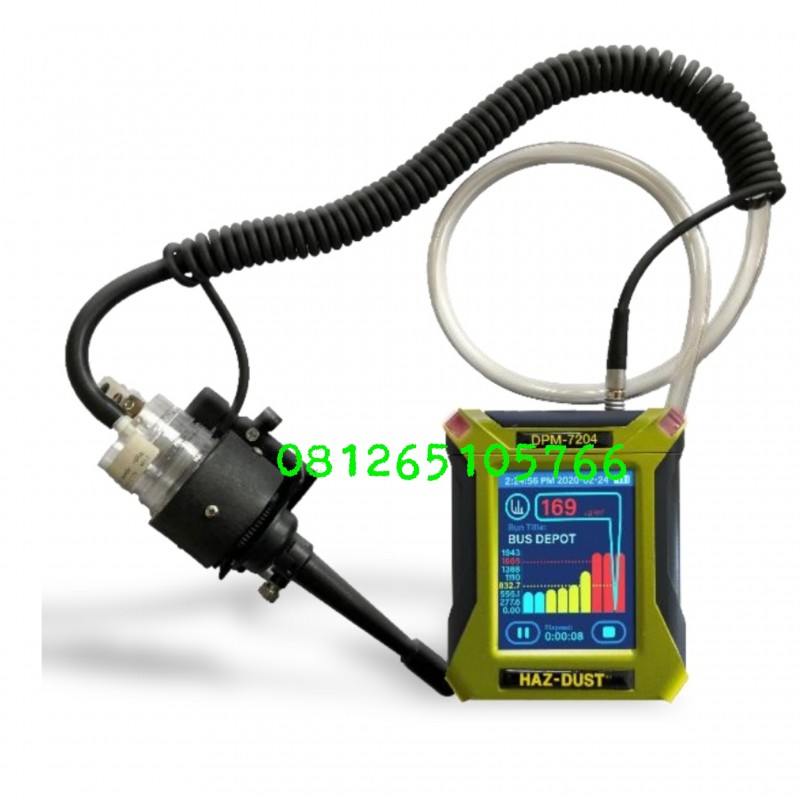

▪ Complete unit : Respirable Sampling Head


: Inhalable Sampling Head


: Calibration Span Reference for Verifying Calibration in the field


: Cleaning Kit


: Black padded protective pouch with carrying strap


: DustComm Pro Software an Instruction manual on USB
