DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700 Produk ALAT MONITORING LINGKUNGAN PERDAGANGAN

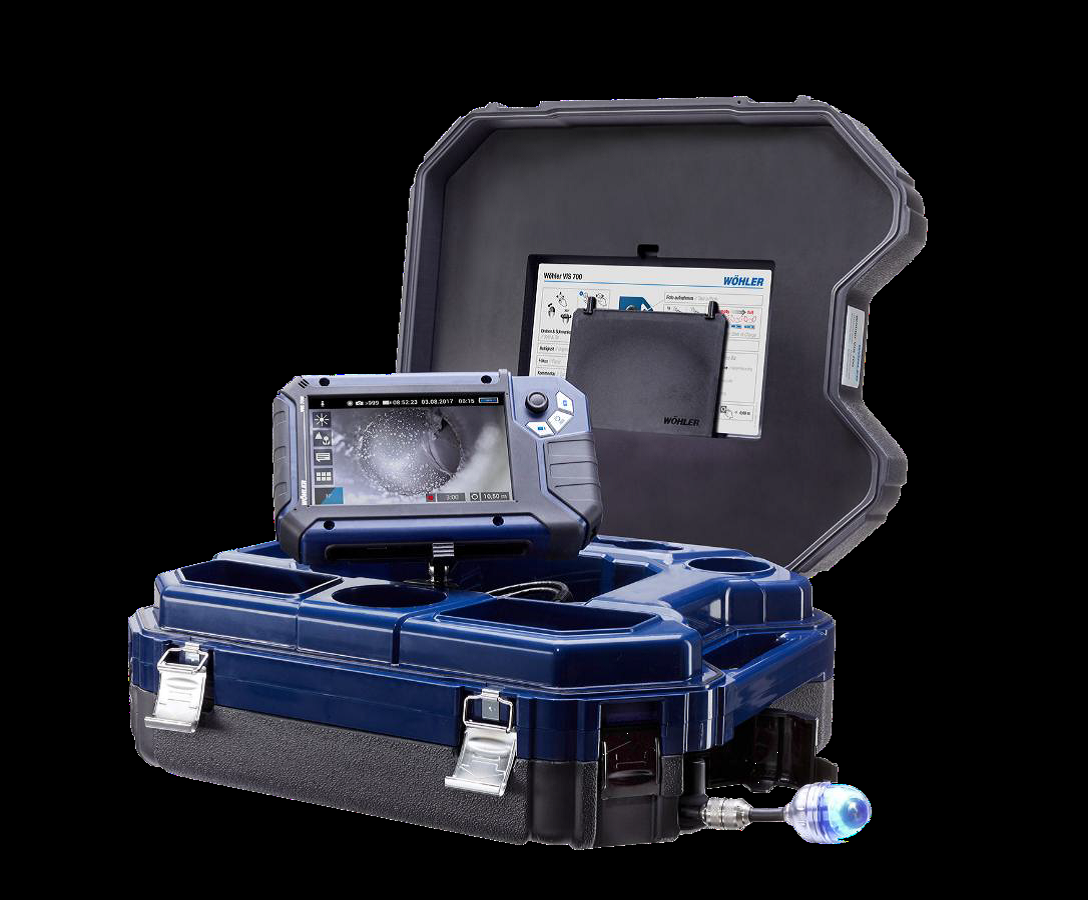

DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700

Dapatkan Spesifikasi Harga DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700 Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

DIGITAL CAMERA || VIDEO INSPECTION SYSTEM VIS-700

Fungsi: Alat inspeksi pipa, NDT, Saluran air limbah, ruang berongga, tangki dengan kamera /video.

Spesifikasi :
A. Monitor
▪ Dimension housing	: 250 x 155 x 54 mm
▪ TFT display	: 7" / 16:9 format; 1280 x 800 px
▪ Video out	: HDMI
▪ Weight	: 860 g
▪ Power supply	: USB C 5 V / 3 A
	: 3.7 V, 11.4 Ah, rechargeable Li-Ion battery
▪ Battery operation time	: 4 h

B. Pan & Tilt Camera Head Φ 40 mm

▪ Type	: 1/2.7" Color CMOS
▪ Viewing angle, diagonal	: 75°
▪ Focus distance	: 27 mm
▪ Light source	: 10 white LEDs
▪ Protection	: Waterproof to IP 67
▪ Dimension	: Ø 40 x 60 mm length
▪ Transmit freq. Of locator	: variable 8,9 kHz

C. Camera Rod
▪ Length	: 30 m
▪ Diameter	: Ø 8.6 x 5.6 mm (oval)
	: Electronic meter counter
▪ Resolution	: 0.023 m
▪ Max. deviation	: 5 % of reading

D. Memory
▪ Max. capacity of SD card	: 32 GB
▪ Technology	: SD or SDHC, speed class 10
▪ Recording capacity	: Approx. 3 GB/h
▪ Resolution recording	: 1280 x 720 HD, max. 25 fps
▪ Recording format	: AVI (H264)

E. Double-walled plastic case
▪ Dimensions	: 18 x 44 x 50 cm
▪ Total weight incl. monitor,
camera head and push rod	: 9.7 kg

F. Locator receiver
▪ Display	: Graphic camera position indicator
	: Output impedance,
▪ headphones	: Typ. 32 Ohm
▪ Frequency	: ~8.9 kHz
▪ Power supply	: 3.7 V rechargeable Li-Ion battery
▪ Dimensions /weight	: 32 x 14 x 7 cm / 605 g

G. Complete Unit

- VIS 700 monitor with HD TFT monitor 7" with 1,5 m cable

- Glare protection

- Lithium-Ionen battery

- Pan & tilt color camera head Ø 40 mm, detachable

- Locator (receiver)

- SD memory card 32 GB

- Camera push rod 8.6 x 5.6 mm, 30 m long

(dismountable for cleaning)

- 3 replacement plastic domes

- USB-charger with USB-C-cable

- Plastic case

- Anti slide mat
