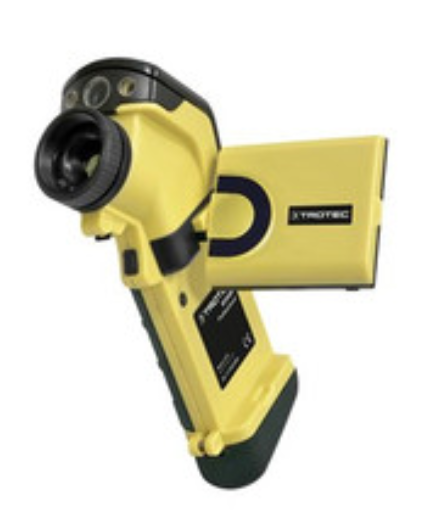

EC060V INFRARED CAMERA-THERMAL IMAGING CAMERA

Dapatkan Spesifikasi Harga EC060V INFRARED CAMERA-THERMAL IMAGING CAMERA Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

EC060V INFRARED CAMERA-THERMAL IMAGING CAMERA

Fungsi: alat ukur suhu dengan sinar infrared.

Specification :
▪ Temperature range	: -20°C to +250°C
▪ Accuracy	: ±2°C, ± 2% of the measured value
▪ Detector type	: Focal Plane Array (FPA), uncooled microbolometer
▪ Detector resolution	: 160 x 120 pixels
▪ Spectral range	: 8 to 14 µm
▪ Field of Vision (FOV)	: 20° x 15°
▪ Geometric resolution	: 2.2 mrad
▪ Thermal sensitivity	: 0.08 °C at 30 °C
▪ Image repetition frequency	: 50/60 Hz
▪ Focus	: manual
▪ Min. Focus Distance	: 0.10 m
▪ Digital photo camera	: Colour representation 680 x 480 pixels, integrated photo lamp
▪ Video norm	: PAL
▪ Display	: 3-inch TFT LCD
▪ Image display	: Pseudo colours, 6 colour palettes
▪ Laser type	: Semi-conductor AlGalnP diode laser, 1 mw/635 nm red
▪ Laser classification	: Class 2
▪ Battery type	: Standard, Li-ion; rechargeable, replaceable
▪ Operating time	: ≈ 3.0 h
▪ Mains power	: 8 - 11V DC
▪ Energy saving mode	: user defined
▪ Operating temperature	: -15 °C to +50 °C
▪ Storage temperature	: -40 °C to +70 °C
▪ Protection class	: IP 54 IEC 529
▪ Shock	: 25G IEC 68-2-29
▪ Vibration	: 2G IEC 68-2-6
▪ Dimensions	: 175 x 55 x 160 mm
▪ Weight	: 500 g

Complete unit :

▪ EC060 V with standard lens

▪ Standard software package

▪ Operating instructions

▪ 2GB mini SD interchangeable memory cards

▪ Li-ion battery

▪ Docking station

▪ Battery charger

▪ Video cable

▪ Temperature test certificate
