HANDHELD LASER GAS LEAK DETECTOR GAS TRAC LZ-50 Produk ALAT MONITORING LINGKUNGAN PERDAGANGAN

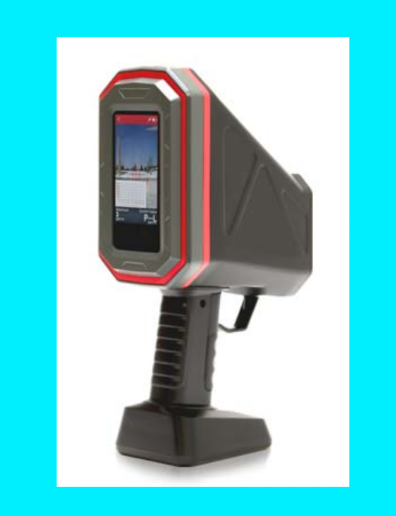

HANDHELD LASER GAS LEAK DETECTOR GAS TRAC LZ-50

Dapatkan Spesifikasi Harga HANDHELD LASER GAS LEAK DETECTOR GAS TRAC LZ-50 Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

HANDHELD LASER GAS LEAK DETECTOR GAS TRAC LZ-50

Fungsi: alat deteksi kebocoran gas.

Specifications :
▪ Detection Technology	: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
▪ Methane Detection Range	: 0-50,000ppm-m in 1ppm-m increments
▪ Sensitivity	: 5ppm-m ≤15m (50ft)/10ppm-m ≤50m (150ft) @ > 300ppm-m
▪ Response Time	: < 0.1 seconds
▪ Detection Distance	: 0.5m to 50m (1.5’ to 150’)
	: Distance may vary depending on reflection
▪ Distance Indicator	: 0.2m to 30m (6” to 100’)
	: Range may vary depending on reflection
▪ Beam Dimension	: Conical, 60cm diameter at 50m (24” at 150’)
▪ Alarms	: 3 adjustible threshold alarms with baseline (Level 1, 2, 3)
	: Visual, Audible, and Tactile
▪ Warnings	: Low reflection, low battery
▪ Calibration/Bump Test	: Carrying case incorporates calibration/bump test cell.
▪ Laser classifications	: IR laser (methane detection) Class 3R
	: Target laser (green) Class 3R
	: Distance laser (red) Class 3R
▪ Communication	: Wifi
▪ Display	: 4” LCD with Incorporated “cross hair” for target acquisition
▪ User Interface	: Android
▪ Operational Temp	: -20C to 50C (-4F to 122F)
▪ Storage Temp	: -40C to 60C (-40F to 140F)
▪ Humidity	: 5 to 95% non-condensing
▪ Enclosure	: Designed to meet IP54
▪ Intrinsic Safety	: Designed to meet US and ATEX
▪ Weight	: 1.5kgs (3.3lbs)
▪ Size	: 165mm (6.5”) x102mm (4.1”) x341mm (13.4”)
▪ Power Source	: Internal Lithium Ion
▪ Battery Life	: 5 Hours continuous
▪ Recharge Time	: 3 to 4 hours
