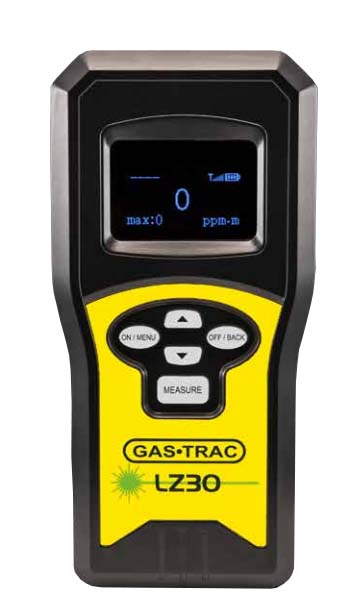

HANDHELD LASER METHANE DETECTOR-GAS TRAC LZ30

Produk Lain

Detail Produk

Fungsi: alat deteksi Gas Methane.

Specification :
▪ Detection Technology	: Tunable Diode Laser Absorption Spectroscopy (TDLAS)
▪ Methane Detection Range	: 0-50,000ppm-m in 1ppm-m increments
▪ Sensitivity:	: 5ppm-m ≤15m (50ft)/10ppm-m ≤30m (100ft) @ > 300ppm-m
▪ Response Time:	: ≤0.1 seconds
	: Distance may vary depending on reflection
▪ Distance Indicator	: 0.2m to 30m (6” to 100’)
	: Range may vary depending on reflection
▪ Beam Dimension	: Conical, 20cm diameter at 30m (8” at 100’)
▪ Alarms	: Adjustable threshold alarm with baseline
	: Visual, audible, and tactile
▪ Warnings	: High/Low reflection, low battery
▪ Calibration/Bump Test	: IR laser (methane detection) Class 3R
	: Target laser (green) Class 3R
	: Distance laser (red) Class 3R
▪ Communication	: Bluetooth. Supported by Android.
▪ Display	: OLED
▪ Operational Temp	: -20C to 50C (-4F to 122F)
▪ Storage Temp	: -40C to 60C (-40F to 140F)
▪ Enclosure	: Designed to meet IP54
▪ Intrinsic Safety	: Designed to meet US and ATEX
▪ Size	: 164mm x 78mm x 36mm
▪ Weight	: 300g
▪ Battery Life	: 6 Hours Continuous
▪ Recharge Time	: 3 to 4 Hours
▪ Power Source	: Internal Lithium Ion

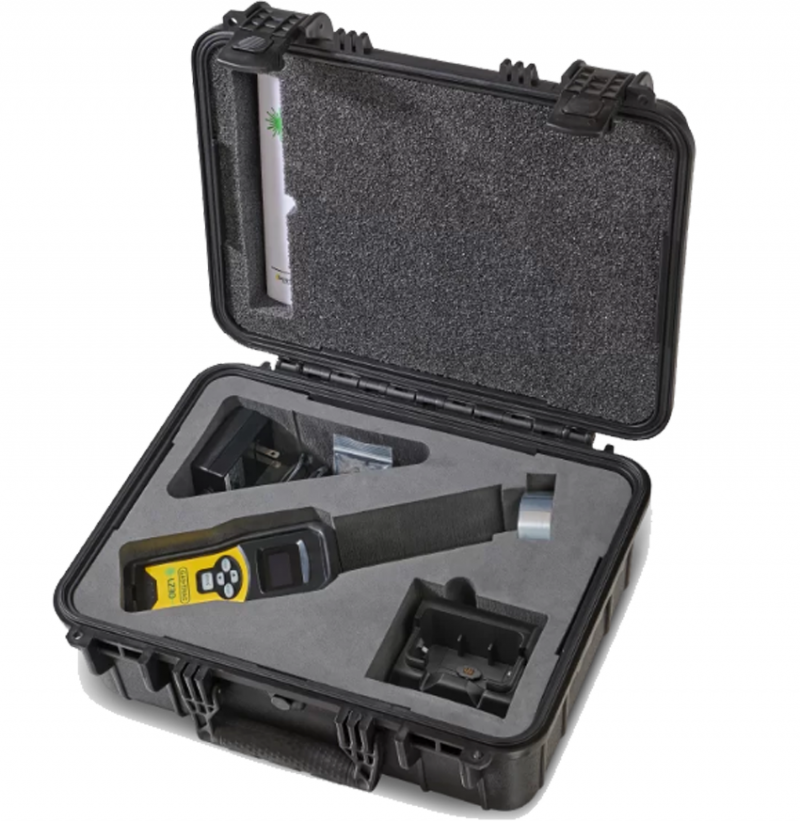

▪ Hard Carrying Case
▪ Instruction Manual
