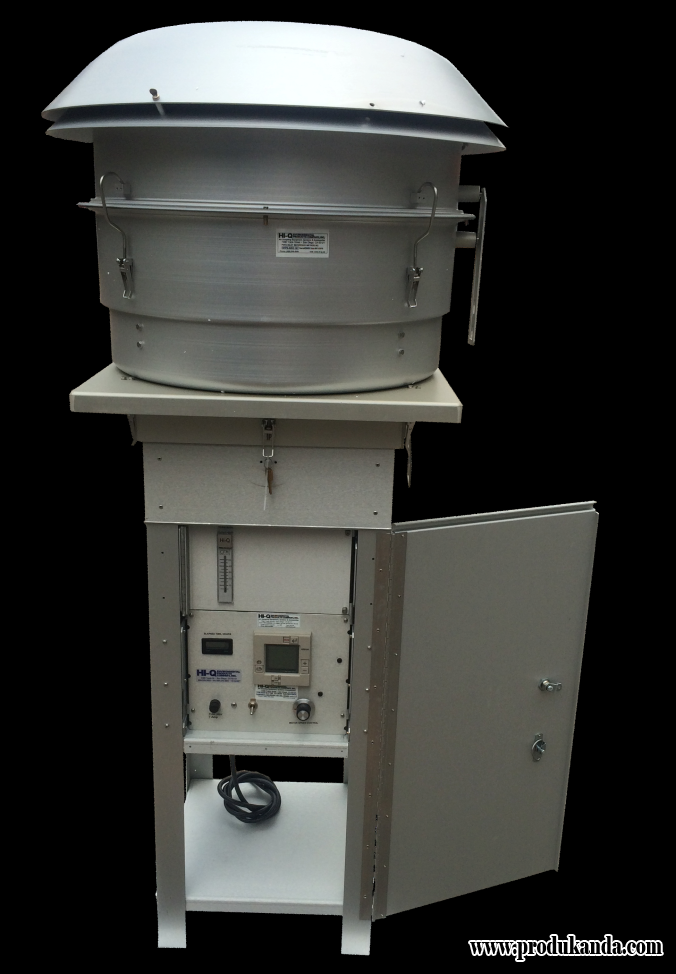

HIGH VOLUME AIR SAMPLER - HVP-TSP-PM10-PM2.5 3300 BRL

Produk Lain

Detail Produk

Fungsi : Alat sampling debu ukuran TSP PM10 dan PM2,5μM di udara ambient.

Spesifikasi Alat :
▪ TSP HVAS	: 230 VAC, 3-Stage, Brushless Blower Manual speed Control
	outdoor High Volume Air Sampler, with total volume LPM
▪ PM10 Inlet	: PM10 size selective sampling inlet High Volume Air Sampler
	Overal head dimension 19" x 28" Dia PM-10 Style 8" x 10"
	Filter Paper Holder without Mass Flow probe (RTD) Mounting
	hole 8" x 10" removable Filter Paper Cartridge Holder
▪ PM2.5 Retrofit	: PM2.5 Retrofit High Vol Inlet Complete Kit to Retrofit Existing
	40 CFM PM10 System to PM 2.5 Micron system.
	PM 2.5 Inlet Sist Inside PM-10 Inlet
▪ Timer	: 7 Day, 24 hours Programmable Electronic timer with two
	independent Control Circuit Electronic, resettable hours &
	tenth of hours, LCD red out 5 year internal battery.
▪ Compound	: Dow corning release compound (5.3 oz tube) used for
	PM10 shim Plate
▪ Pressure recorder	: 230VAC, 50 Hz continuous flow pressure recorder, 24 hours,
	range 0-10 H2O Accuracy : 2% full scale Average
	response time : 1-5 seconds
▪ Filter Paper	: Glass Fiber Filter Paper 8" x 10" Size 100 sheets per box (included)
▪ Housing	: Anodized Aluminium outdoor shelter with lockable media roof
▪ Cal. Flow range	: 10-50 CFM (cfm or lpm, unit calibration upon request)
▪ Unit Net weight	: ± 50 lbs, 44 lbs size selective inlet
▪ Shipping weight	: 20"x20"x50"@58lbs (box 1)
	TSP HVAS 32"x32"x26"@53lbs (box 2) size selective inlet carton
▪ Power	: 230 VAC, 50/60Hz
