| Spesifikasi : |
|
|
| Parameter yang diukur : |
|
|
| 1. Laju Aliran Udara |
: |
Velocity Range |
| |
|
: |
0 ~30 m/s |
| |
|
: |
196~5,900 ft/min |
| |
|
: |
3,6~108 km/h |
| 2. Intensitas Cahaya |
: |
0~200,000 Lux |
| 3. Kelembaban |
: |
0~99,9 %RH |
| 4. Temperature |
: |
-20 to 60 oC |
| 5. Gas CO2 |
: |
0~9999 ppm |
| 6. Gas CO |
: |
0-1000 ppm |
| 7. Gas CH4 |
: |
0-4.00% |
| 8. Gas H2S |
: |
0-100 ppm |
| 9. Gas O2 |
: |
0-30% Vol |
| 10. Bakteri di Udara |
: |
30~120 L/min |
| 11. Hygiene Test strip |
: |
0~9,999 RLU (100 test |
| |
|
|
|
| Spesifikasi Alat : |
|
|
| 1. Laju Aliran Udara : |
|
|
| ▪ |
Current volume |
: |
0 - 999.9 m³/min (CMM) |
| ▪ |
Air Velocity |
: |
up to 30 m/s |
| ▪ |
Temperature |
: |
-10 to 60 °C (14 to 140 °F) |
| |
|
: |
°C/°F, m/s, ft/min, m³/min (CMM), |
| |
|
: |
km/h, mph, knots, minimum, |
| |
|
: |
maximum value display, hold |
| |
|
: |
function, illuminated display, |
| |
|
|
|
| 2. Alat Ukur Intensitas Cahaya : |
|
|
| ▪ |
Accuracy |
: |
± 2 of reading ± 1 dig. ( A Grade) |
| ▪ |
Resolution |
: |
0 ~ 200, 000 1 Lux |
| |
|
: |
2, 000 ~ 20.000 10 Lux |
| |
|
: |
20, 000 ~ 200, 000 100 Lux |
| ▪ |
Response time |
: |
approx.0.3 seconds |
| ▪ |
Sensor |
: |
High precision silicon photo cell. |
| ▪ |
Power |
: |
One 006P 9V Battery. |
| |
|
|
|

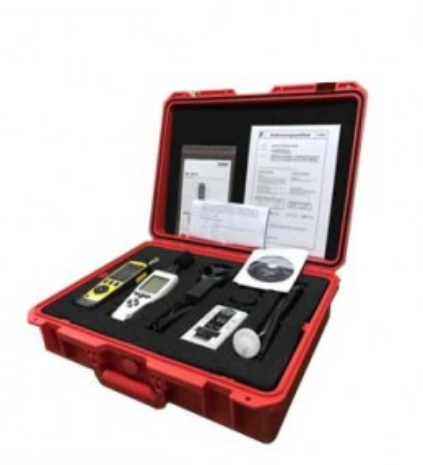

| 3. Multiparameter Air Quality : |
|
|
| ▪ |
Accuracy Kelembaban |
: |
±3% RH |
| ▪ |
Accuracy Temperature |
: |
0,6°C |
| ▪ |
Accuracy Gas CO2 |
: |
±30ppm + 5% of reading |
| ▪ |
Accuracy Gas CO |
: |
± 10ppm for less than 100ppm |
| ▪ |
Sumber Tenaga |
: |
Battre AA X 4 PCS |
| ▪ |
Display |
: |
LCD |
| ▪ |
Function |
: |
Max, MIn, Average |
| ▪ |
Data Analysis |
: |
Mini USB output to PC |
| |
|
|
|
| 4. Deteksi Gas: |
|
|
| ▪ |
Akurasi |
: |
CH4 ; 0,01%, O2; 0,1% dan H2S; 1ppm |
| ▪ |
Sensor |
: |
Infrared, Electrochemical |
| ▪ |
Alarm |
: |
Audible 75dB |
| ▪ |
Display |
: |
Liquid Crystal Display (LCD) |
| ▪ |
Battery |
: |
3,7V/1500mA (4-5 jam di charge) |
| ▪ |
Size/berat |
: |
130x66x30mm (500g) |
| |
|
|
|

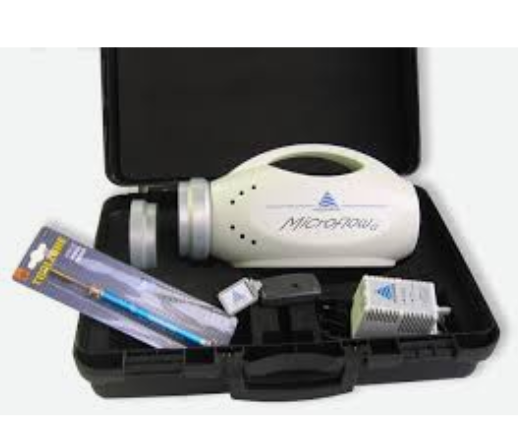

| 5. Bakteri di udara : |
|
|
| ▪ |
Sampling head |
: |
Aluminium 90mm 350 hole |
| ▪ |
Media |
: |
Pertidish 90mm |
| ▪ |
Transfer data |
: |
USB port |
| |
|
|
|
| 6. Hygiene Test : |
|
|
| ▪ |
Proses baca |
: |
10 detik |
| ▪ |
Batas deteksi |
: |
5 x 10 -15 mol ATP |
| ▪ |
Memory |
: |
2500 data |
| ▪ |
Koneksi ke PC |
: |
USB cable |
| |
|
|
|
| 7. Perlengkapan Alat: |
|
|
| ▪ |
Portable Incubator |
: |
25~55 °C |
| ▪ |
colony Counter |
: |
Complete with lamp |
| ▪ |
Petri Dish Glass |
: |
Plastic 90/100 (100 pcs) |
| ▪ |
Media Agar |
: |
1 bottle (500 gr/btl) |
