ONLIMO | Online Monitoring | WQM-35
onLIMO | online Monitoring | WQM-3
| |

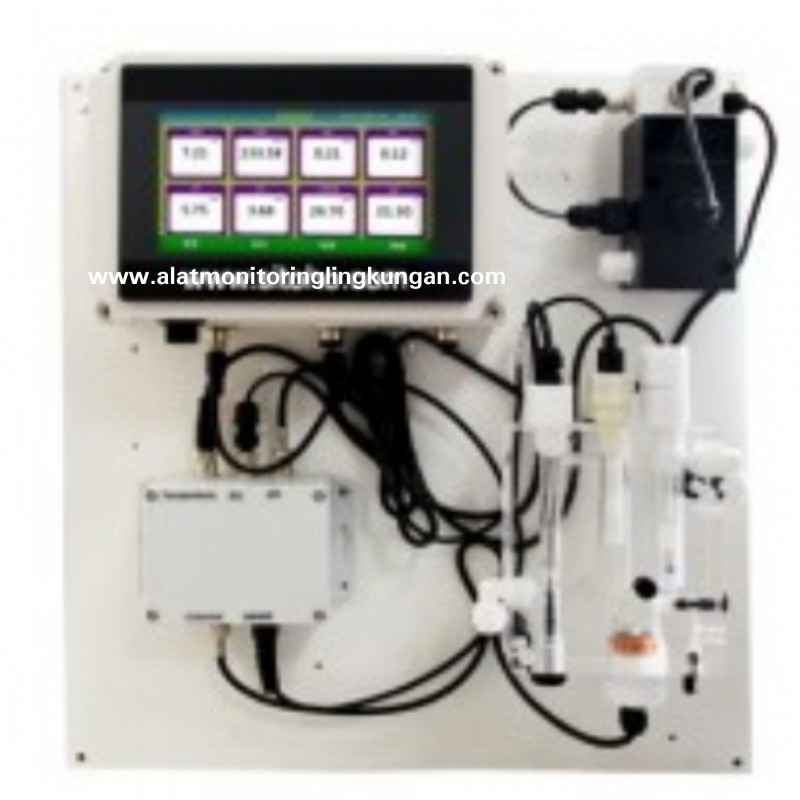

| onLIMO (On Line Monitoring) adalah sistem pemantauan kualitas air secara online dan realtime menggunakan |
| unit sensor yang terintegrasi dengan unit data logger, unit transmisi data dan sistem software. |
| onlimo dapat diterapkan untuk pemantauan kualitas air baik di sungai, danau, waduk, pantai maupun |
| di perairan laut atau untuk memantau air limbah di industri. |
| |
|
|
| Spesifikasi : |
|
|
| A. Parameter yang di ukur |
Range |
Accuracy |
| ▪ COD |
: 0-10.000 mg/l |
±5% |
| ▪ Temperature |
: 0˚ C - 85˚ C |
±0.5 °C; ±0.1 °C |
| ▪ Dissolved Oxygen |
: 0-50 mg/l |
0,1 mg/L |
| ▪ pH |
: 0 - 14pH |
±0.05 pH |
| ▪ Turbidity |
: 0 - 10.000 NTU |
±5%FS |
| ▪ TDS |
: 0 - 3000 mg/L |
±1%FS |
| ▪ TSS |
: 0 - 50.000 ng/L |
±5%FS |
| ▪ Ammonia |
: 0 - 1100 mg/l |
±5%FS |
| ▪ Nitrate |
: 0 - 1000 mg/L |
±5% |
| ▪ Nitrite |
: 0 - 100 mg/L |
±5% |
| ▪ BOD |
: 0 - 5,000 mg/L |
±5% in standard solution |
| ▪ Conductivity |
: 0 - 200 mS/cm |
±1% FS |
| ▪ Salinity |
: 0 - 14.9 ppt |
±1% FS |
| ▪ Depth |
: 0 - 100 m |
±0,1% FS; 0.05% FS |
| ▪ ORP |
: -1500 - 1500 mV |
±5 mV |
| ▪ Debit |
: 0.02~15 m/s |
± 0.02 m/s |
| |
| B. Monitoring Instruments (Fiture HMI) |

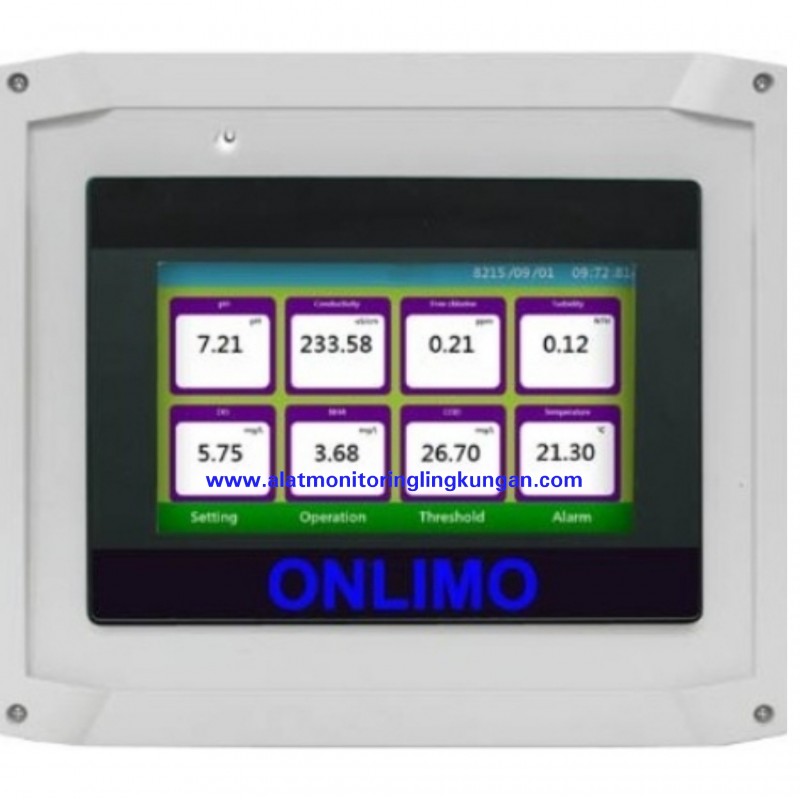

| ▪ 7" color touch screen LCD display |
| ▪ Operating temperature: 0~65 C |
| ▪ Operating humidity: 0~95% RH |
| ▪ 16 MB solid state, rotating memory, |
| ▪ no data loss after power failure |
| ▪ IP66 enclosure |
| |
|
| C. Water Quality Spectro |
|
| ▪ Measurement range |
: UV-IR 200~800 nm |
| ▪ Light source |
: Xenou flash lamp, 20 years life |
| ▪ Light path |
: 1, 2, 5, 10, 35 mm (selectable) |
| ▪ Measurement interval |
: 10 sec to 1 hour (adjustable) |
| ▪ Operation pressure |
: Max. 10 Kgf/cm2 |
| ▪ Operating temperature |
: -10~50 o |
| ▪ Process flow rate |
: max.3 m/s |
| ▪ Safety |
: CE, FCC |
| ▪ Protection |
: IP68 |
|
