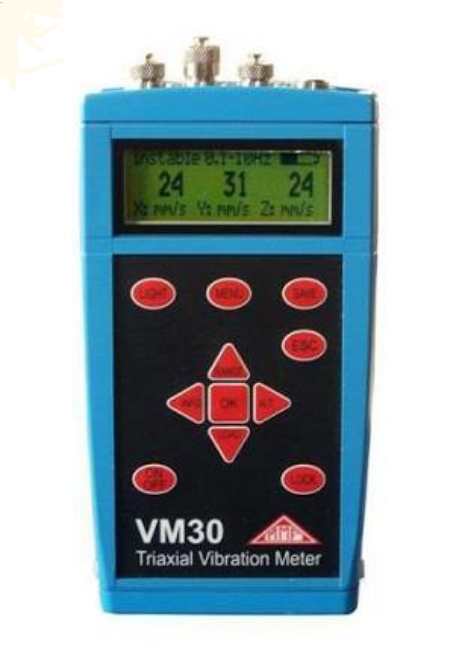

PORTABLE HUMAN VIBRATION METER VM30

Produk Lain

Detail Produk

PORTABLE HUMAN VIBRATION METER VM30-Hand Arm and Whole Body

Fungsi : Alat ukur paparan getaran mesin pada Tubuh.

Spesifikasi :
▪ Range Measurement
- Human vibration	: 0.005 m/s² to 6000 m/s
- Vibration Acceleration	: 0.005 m/s² to 6000 m/s
- Vibration Velocity	: 0.05 mm/s to 100 m/s
- Vibration Displacement	: 0.5 μm to 1000 mm
▪ Accuracy	: ± 3 % and ± 2 digits
▪ Frequency weightings	: Wh (Hand-Arm); Wb, Wc, Wd,
▪ Other frequency ranges	: We, Wg, Wj, Wk and Wm
- Acceleration	: 0,4 - 100 Hz, 2-300 Hz,
	: 0,4-1250 Hz, 10- 1250 Hz,
	: 0,4-10 000Hz, 1000-10 000 Hz
- Velocity	: 2- 300 Hz, 10 - 1250 Hz ;
- Displacement	: 6 - 200 Hz
▪ Display modes	: Running RMS (1 s), max. RMS
	(MTVV), interval RMS,
	estimated vibration dose value
	(eVDV), vibration total value
	(ahv), peak, maximum peak
	and crest factor
▪ Input channels	: 1 to 3 IEPE compatible inputs
▪ Gain ranges	: 1 / 10 / 100 / 1000 manually
	selectable or autoranging
▪ Setups	: 10 individually selectable
	parameter sets may be saved
	and recalled by key
▪ Memory	: > 1000 measurements with
	date, time and comment
▪ PC interface	: RS-232, 115 KBd/s, 3 pin
	socket Binder 711 (female) or
	USB / RS-232 adapter
▪ Display	: graphic LCD with 120 x 32
	pixels and backlighting
▪ Battery	: 3 Alkaline Mignon ("AA") cells
▪ External power supply	: 8 - 12 VDC, < 150 mA via 5 pin
	socket Binder 711 (female)
▪ Dimension	: 165 x 92 x 31 mm³; 350 g
	(with out connector)

▪ Complete Unit:

- Main Unit

- Triaxial accelerometer Hand arm and Whole body.

- Cable 091

- Handle adapter 140 and 142

- Signal cable 034

- Serial interface cable

- Main power supply

- PC Software

- Battery

- Instruction Manual
