Detail Produk

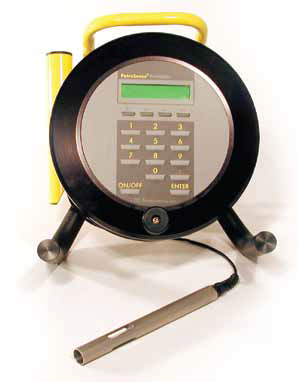

PORTABLE HYDROCARBON ANALYZER PHA-100

Fungsi: alat ukur Hydrocarbon pada air.

Alat deteksi dan pengukuran Total Hydrocarbon dalam air dirancang

Portable agar dapat memenuhi persyaratan pemantauan dilapangan

dengan cepat dan akurat. Metode ini lebih realtif simple bila

dibandingkan dengan menggunakan Gas Chromatograpic.

Application :

▪ Remediation Monitoring

▪ Site Assessment

▪ Well Plume Monitoring

▪ Storm / Waste Water Monitoring

▪ Hydrocarbon Breakthrough

▪ Leak Detection AST/UST

Portable Hydrocarbon Analyzer PHA-100 telah disertifikasi pihak ketiga oleh

Ken Wilcox Associates. Lisensi Laboratories telah melakukan sertifikasi UL, CUL

dan KEMA ia II untuk penggunaan PHA di lokasi berbahaya. Selain itu,

PHA AHP-100 (probe analog) tercantum dalam US Environmental Protection

Agency (USEPA) Daftar Analisis Deteksi Leak untuk Sistem Tangki Penyimpanan

Bawah Tanah dan Negara Bagian California Daftar Peralatan Deteksi Kebocoran

dan Metode untuk Tank Penyimpanan Bawah Tanah, LG 113-12.

PERFORMANCE	VAPOR	WATER
▪ Operating range	: 0-20.000ppm as TPH	: 0-20.000ppm as TPH
▪ Lower Detection	: <10 ppm as xylene	: 0.1 ppm as xylene
▪ HC Detection	: C6 and higer MW	: C6 and higer MW
▪ Accuracy	: ±15% of reading	: ±10% of reading
▪ Respon time	: <5 second	: <5 second
▪ Operating Temp	: 0 to 50°C	: 0 to 50°C
▪ Corelation GC data	: 95%	: 95% vs. EPA Method 8020

Spesification :
▪ Readout	: Backlit LCD-part per million, °C or °F, water of vapor
▪ Memory	: Data from 100 samples
▪ Battery life	: 8 hours normal operation (Low battery indicator)
▪ Charge	: 12 hour charge period, AC
▪ Dimension	: 25cm (wide) x 30 cm (High) x 18cm (deep)
▪ Weight	: 4,5 kg
▪ Serial output	: 9600 baud
▪ Calibration	: Simple calibration with certified, pre-mixed p-xylende standard
▪ Probe Dimension	: 19mm x 20 cm
▪ Cable length	: 30 mtr

Complete Unit :

▪ Main Unit 220V

▪ Hydrocarbon Probe

▪ Power/data interface kit

▪ Training guide

▪ Glassware/plasticware for calibration

▪ Three sets of 25 ppm and three sets of 50 ppm premixed calibration standards

▪ 31,1 mtr and field carrying case
