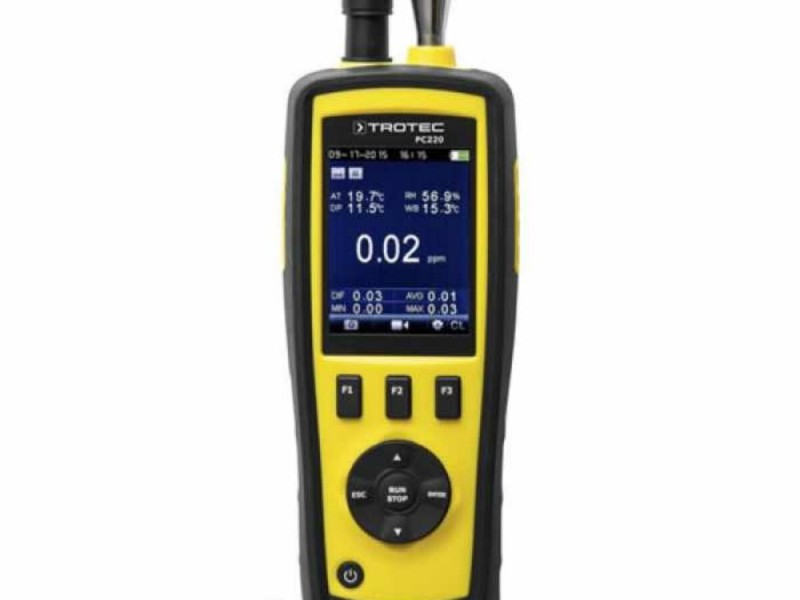

PORTABLE PC-220 PARTICLE COUNTER | ALAT UKUR DEBU

Produk Lain

Detail Produk

Fungsi: alat ukur debu PM 2,5 PM 10, HCHO (Formalin), CO (Carbon Monoxide) didalam ruangan.

Spesifikasi Alat :
1. Particle Concentration 6 Channel	: 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0μm
▪ Counting Eficiency	: 50% at 0.3 μm; 100% for particles > 0.45 μm
▪ Flow rate	: 2.83 l/min (0.1 ft³/min), controlled by internal pump
▪ Light source	: Laser class 3B, wave length 780 nm, 90 mW
▪ Sample Inlet	: Isokinetic probe

2. Particle mas conversion	: 2.5 μm, 10.0μm
▪ Minimal range	: 0 µg/m3
▪ Max range	: 2000 µg/m3
▪ Resolution	: 1 µg/m3

3. HCHO (Formaldehyde) range	: 0.01~5 ppm
▪ Accuracy	: 5%
▪ Resolution	: 1 ppm

4. CO (Carbon Monoxide) Range	: 10~1000 ppm
▪ Accuracy	: 5%
▪ Resolution	: 1 ppm

5. Air Temperature Range	: 0~50 °C
▪ Accuracy	: 0,5 °C

6. Relative Humidity Range	: 0~100 %
▪ Accuracy (40-60%)	: 3%

7. Dew Point Temperature Range	: 0~50 °C
▪ Accuracy (10-40%)	: 0,5 °C

8. Wet Bulb Temperature Range	: 0~80 °C
▪ Accuracy (10-40%)	: ±1 °C

9. Main Unit
▪ Display	: LCD
▪ Data storage	: 5,000 data records on the internal flash memory
▪ Function	: Maximum, minimum and average display
	measured value hold function, alarm function,
	language selection, °C/°F switch.
▪ Power Supply	: Battery type: NiMH battery
▪ Weight	: 0,35 kg

10. Complete Unit

1. Main Unit

2. Mini Tripod,

3. Zero filter and connection hose,

4. Battery charger, USB cable and Software, Manual books,

5. Certificate Calibration, Carrying case
