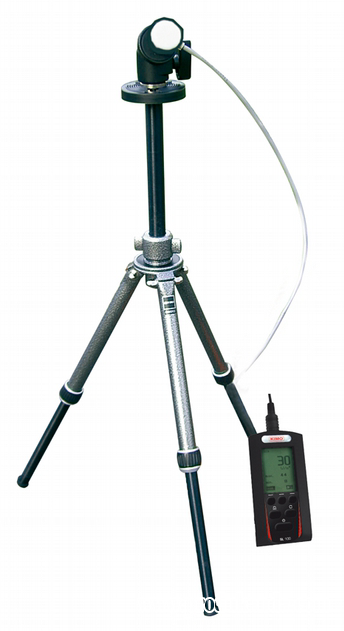

PORTABLE SOLAR RADIATION SL-200

Produk Lain

Detail Produk

Fungsi: alat ukur penyinaran matahari.

Spesifikasi :
a. Portable Solar Radiation
▪ Solar irrigation range	: from 1 W/ m2 to 1300 W/ m2
▪ Energetic exposure range	: 1 Wh/ m2 to 500 kWh/ m2
▪ Frequency of the measure	: 2 / s
▪ Accuracy	: 5% of measurement
▪ Calculation frequency ( W/ m2)	: 1 / min ( average on 60 seconds)
▪ Storage capacity	: 31 days, 44640 saved recording points
▪ Fast datas download	: 1000 values/ second
▪ Package dimensions	: 58 x 120 x 33 mm
▪ Autonomy	: ±72 hours in continuous mode
▪ Power supply	: 3 LR3-AAA batteries
▪ Conformity	: In accordance with RoHS directives
b. Solar Cell
▪ Spectral response	: 400 to 1100 nm
▪ Nominal sensitivity	: 100mv for 1000W/m2 *
▪ Response in cosine	: corrected until 80°
▪ Coefficient in temperature	: +0,1% /°C
▪ Effective area	: 1 cm2
▪ Mode	: photovoltaic
▪ Material.	: polycristallin silicon
▪ Dimensions/weight	: 30 x 32 mm / 60g
▪ Cable length	: 1,25 m (can be unplugged)
