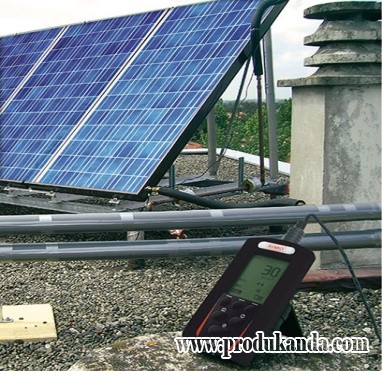

PORTABLE SOLARI METER SL-100

Produk Lain

Detail Produk

Fungsi : Alat ukur penyinaran Cahaya Matahari.

Spesifikasi :
a. Instrument
▪ Solar irrigation range	:	1 W/m2 to 1300 W/m2
▪ Energetic exposure range	:	1 Wh/m2 to 500 kWh/m2
▪ Frequency of measurement	:	2 / s
▪ Accuracy	:	5% of measurement
▪ Calculation frequency (W/m2)	:	1 / min (average on 60s)
▪ Capacity (Wh/m2)	:	3 days – Results saved when instrument is switched off
▪ Operating temperature	:	from -10°C to +50°C
▪ Storage temperature	:	from -10°C to +55°C
▪ Housing dimensions	:	58 x 120 x 33 mm
▪ Autonomy	:	more than 72 hours in continuous mode, when using
		a power supply adapter
▪ Power supply	:	3 LR3-AAA batteries
▪ Electronic	:	Digital
▪ Electronic board	:	Varnish
▪ Conformity	:	in accordance with RoHS directives

b. Solar cell
▪ Spectral response	:	from 400 to 1100 nm
▪ Nominal sensitivity	:	100mv for 1000W/m2 *
▪ Response in cosine	:	corrected until 80°
▪ Coefficient in temperature	:	+0,1%/°C
▪ Effective area	:	1 cm2
▪ Operating temperature	:	from -30°C to +60°C
▪ Humidity dependence	:	100% RH
▪ UV performance	:	excellent (PMMA filter)
▪ Mode	:	photovoltaic
▪ Material	:	polycristallin silicon
▪ Front face	:	translucent PMMA
▪ Tightness	:	Polyurethane resin and housing in PMMA and polyacetol
▪ Cell weight	:	60g
▪ Cell dimensions	:	30 x 32 mm
▪ Cable length	:	1,25 m (can be unplugged)
▪ Complete unit	:	Tripod, Solar cell, manual
	:	Book, certificate of
	:	Calibration
