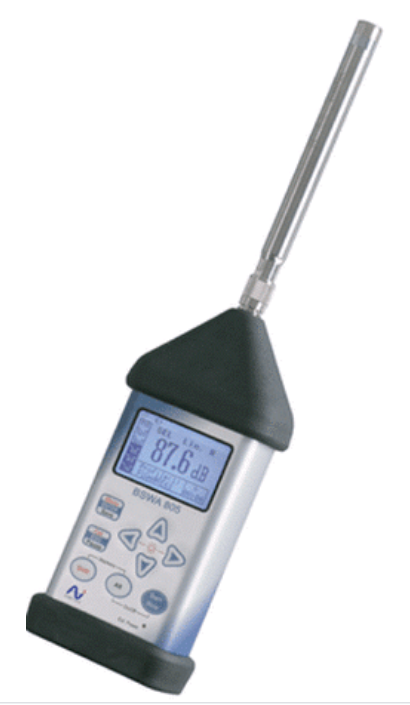

PORTABLE SOUND LEVEL METER TYPE 2 AND CALIBRATOR BS-803

Produk Lain

Detail Produk

Fungsi : Alat ukur kebisingan suara.

Spesifikasi :
▪	Standard	:	IEC 61672 Class 2
▪	Level Meter	:	SPL, Leq , SEL, Lden , Ltm3 , Ltm5 ,
			statistics - Ln (L1÷L99), LMax , LMin , LPeak , Time
			History Simultaneous measurement in three
			profiles with independent set of filters and
			detector time constants
▪	Octave	:	1/1 Octave
▪	FFT	:	FFT analysis(1920 lines in up to 22.4KHz band)*
▪	Weighting	:	A, C, Linear
▪	RMS Detector	:	Fast, Slow, Impulse
▪	Range	:	18dBA(RMS)-141dBA(PEAK)
▪	Linearity	:	26dBA(RMS)-141dBA(PEAK)
▪	Frequency	:	10 Hz - 20 KHz
▪	Dynamic	:	120dB (Level Meter), 100dB (Analysis)
▪	Time HISTORY	:	RMS/Max/MIn/Peak result to internal memory
▪	Display	:	LCD 128x64 with backlighting
▪	Save	:	16MB flash type External USB
▪	Power	:	4AA Alkaline batteries
▪	Size	:	300 x 82 x 42 mm
▪	Weight	:	600 g (Meter)

Sound Calibrator CA115 (INCLUDED):

1000Hz, 114dB, Type 2 with adaptor for 1/2" and

1/4" microphone
