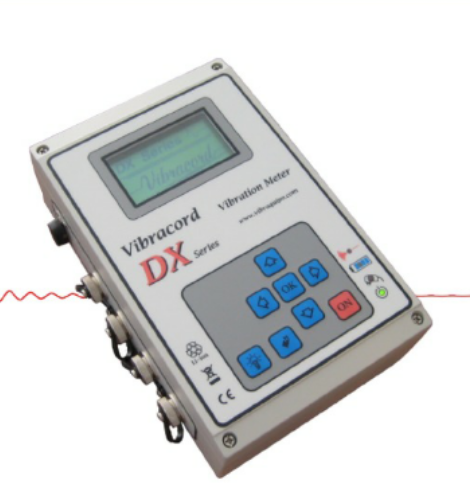

PORTABLE VIBRATION BLASTING MONITOR 7DX-SERIES

Produk Lain

Detail Produk

PORTABLE VIBRATION BLASTING MonITOR 7DX-SERIES

Fungsi : Alat ukur getaran akibat blasting/ledakan, getaran akibat pemasangan pondasi kontruksi paku bumi.

Specification :
▪ Number of Channel	: 7 channel
▪ Sample rate	: 2048 SPS
▪ Analog to Digital Converter	: 16 bits
▪ Frequency range	: 1 ~ 315 Hz
▪ Record time	: 1, 2, 4, 8, 16, 32 s
▪ Trigger mode	: Automatic : Manual : External
▪ Ports for data transfer (OPTIONAL)	: Ethernet (LAN)
	: USB (External disk) : GSM/GPRS
▪ Record and data transfer	: Internal disk , Printer, SMS
	messages , WEB server , FTP
	server, e-mail
▪ Data storage memory	: 200 MB
▪ External power supply	: 12V
▪ Intenal power supply	: Li-Ion rechargeable battery
▪ Autonomy	: 20hours (continuous use)
▪ Visualization	: Visualization Graphic LCD
	screen 128x64 pixels
▪ Keyboard	: 8 keys
▪ Dimensions	: 180x220x70 mm
▪ Weight	: 1,9 kg (unit only)
▪ Operating temperature	: -10 ºC to 50 ºC
▪ Storage temperature	: -20 ºC to 60 ºC

Complete unit :

- Seismographs for blasting

- One microphone for air-wave recording

- Analysis program

- Two three-axis bloks geophones

- Carrying case

- Sertificate of Calibration

- User Manual

- External power supply

- 2 (two) spike

- Printer Module

- Portable external printer

- 1-315 Hz Frequency range
