PORTABLE VIBRATION BLASTING MONITOR MODEL A.4 FX-SERIES

  • Merk : VIBRACORD
  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 50 Unit
  • Pengiriman : 3 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 26.306 Kali
  • Pembaruan : 06-04-2022 14:31
Dapatkan Spesifikasi Harga PORTABLE VIBRATION BLASTING MONITOR MODEL A.4 FX-SERIES Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

Produk Detail

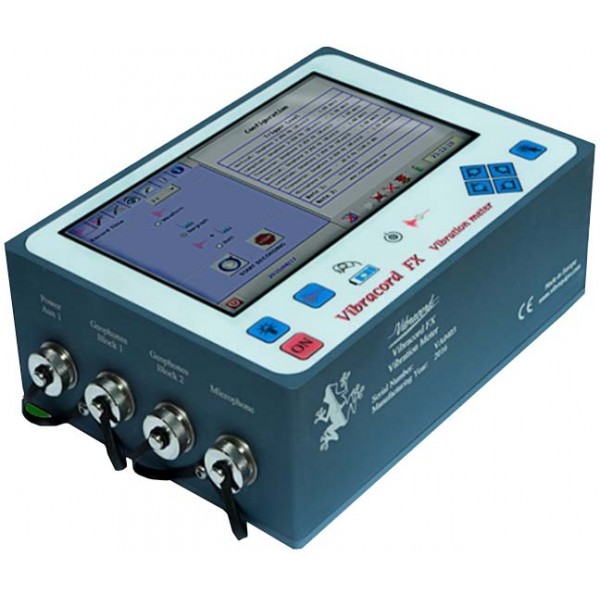

PORTABLE VIBRATION BLASTING  MonITOR MODEL A.4 FX-SERIES

Fungsi : Alat ukur getaran akibat blasting/ledakan, getaran akibat pemasangan pondasi kontruksi paku bumi.

Specification :
▪ Number of Channel  : 4 channel
▪ Sample rate  : 2048 SPS
▪ Frequency range  : 2 ~ 250 Hz (ISEE)
▪ Trigger mode  : Automatic  : Manual : Externa
▪ FFT Calculation : Equipment and computer
▪ Data transfer modes : USB Disk, SD Card, USB Cable
    WEB Server, FTP Server
▪ Data Visualization : Sreen, Printer, WEB Server,
    FTP Server Email
▪ Screen : 7" TFT Color 800x480 pixels
▪ Keyboard  : 8 keys
▪ Data storage memory : 1.8 GiB up to 10.000 record
▪ Intenal power supply  : Li-Ion rechargeable battery
▪ Dimensions  : 200 x 150 x 70 mm
▪ Weight (Without accessories) : ± 1,9 kg (Aluminium case)
▪ Environmental : IP-65

▪ Complete Unit :
- Recording unit
- One three-axis bloks geophones
- Three spikes for fixation
- One Microphone for air wave recording
- Tripod for Microphone
- External power supply
- Analysis program
- Printer Module and External Printer
- User Manual
- Certificate Calibration
- Aluminium Carrying case
