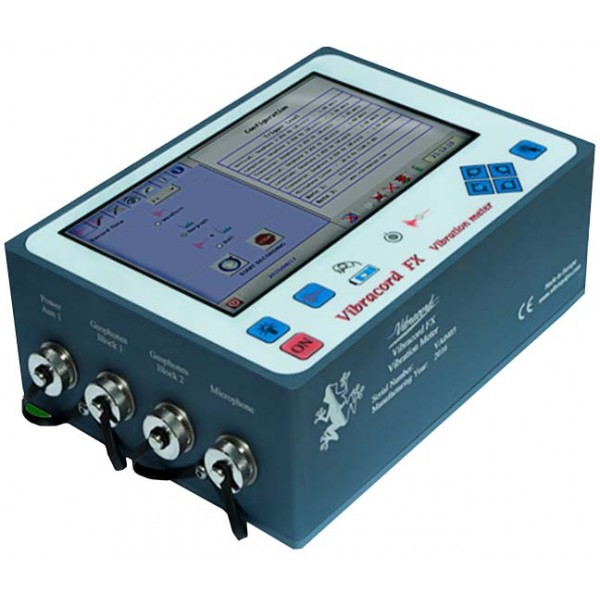

PORTABLE VIBRATION BLASTING MONITOR MODEL A.7 FX-SERIES

Dapatkan Spesifikasi Harga PORTABLE VIBRATION BLASTING MONITOR MODEL A.7 FX-SERIES Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

PORTABLE VIBRATION BLASTING MonITOR MODEL A.7 FX-SERIES

Fungsi : Alat ukur getaran akibat blasting/ledakan, getaran akibat pemasangan pondasi kontruksi paku bumi. (7 Channel)

Specification :
▪	Number of Channel	:	7 channel (Model A)
▪	Sample rate	:	2048 SPS
▪	Frequency range	:	2 ~ 250 Hz (ISEE)
		:	1 ~ 315 Hz (din 45669-1)
▪	Trigger mode	:	Automatic : Manual : Externa
▪	FFT Calculation	:	Equipment and computer
▪	Data transfer modes	:	USB Disk, SD Card, USB Cable
			WEB Server, FTP Server
▪	Data Visualization	:	Sreen, Printer, WEB Server, FTP Server
			Email
▪	Screen	:	7" TFT Color 800x480 pixels
▪	Keyboard	:	8 keys
▪	Data storage memory	:	1.8 GiB up to 10.000 record
▪	Intenal power supply	:	Li-Ion rechargeable battery
▪	Dimensions	:	200 x 150 x 70 mm
▪	Weight (Without accessories)	:	± 1,9 kg (Aluminium case)
▪	Environmental	:	IP-65

▪	Complete Unit	:	Recording unit
		:	One three-axis bloks geophones
		:	Three spikes for fixation
		:	One Microphone for air wave recording
		:	Tripod for Microphone
		:	External power supply
		:	Analysis program
		:	Printer Module and External Printer
		:	1-315 Hz Frequency, two block of geophones
		:	User Manual
		:	Certificate Calibration
		:	Aluminium Carrying case
