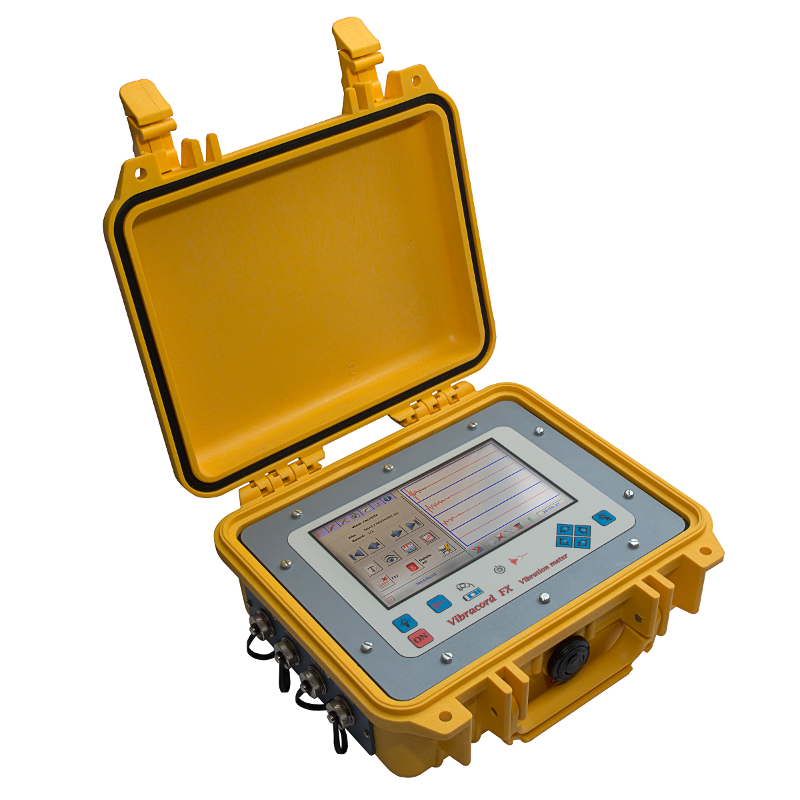

PORTABLE VIBRATION BLASTING MonITOR MODEL B.7 FX-SERIES

Fungsi : Alat ukur getaran akibat blasting/ledakan, getaran akibat pemasangan pondasi kontruksi paku bumi.

Specification :
▪ Number of Channel  : 7 channel (Model B)
▪ Sample rate  : 2048 SPS
▪ Frequency range  : 2 ~ 250 Hz (ISEE)
    : 1 ~ 315 Hz (din 45669-1)
▪ Trigger mode  : Automatic  : Manual : Externa
▪ FFT Calculation : Equipment and computer
▪ Data transfer modes : USB Disk, SD Card, USB Cable
      WEB Server, FTP Server
▪ Data Visualization  : Sreen, Printer, WEB Server, FTP Server
      Email
▪ Screen : 7" TFT Color 800x480 pixels
▪ Keyboard  : 8 keys
▪ Data storage memory : 1.8 GiB up to 10.000 record
▪ Intenal power supply  : Li-Ion rechargeable battery
▪ Dimensions  : 200 x 150 x 70 mm
▪ Weight (Without accessories) : ± 1,9 kg (Aluminium case)
▪ Environmental : IP-65

▪ Complete Unit  : Recording unit
    : One three-axis bloks geophones
    : Three spikes for fixation
    : One Microphone for air wave recording
    : Tripod for Microphone
    : External power supply
    : Analysis program
    : Printer Module and External Printer
    : 1-315 Hz Frequency, two block of geophones
    : User Manual
    : Certificate Calibration
    : Aluminium Carrying case
