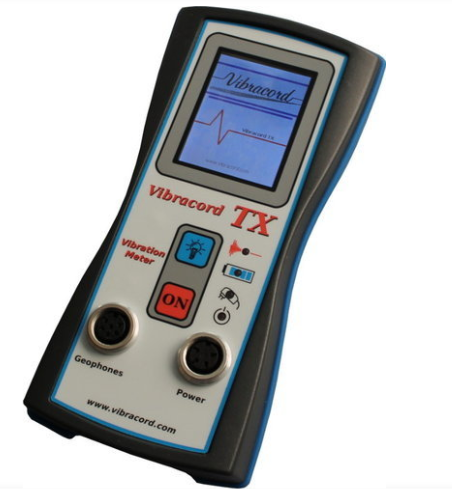

PORTABLE VIBRATION BLASTING MONITOR TYPE-TX

Dapatkan Spesifikasi Harga PORTABLE VIBRATION BLASTING MONITOR TYPE-TX Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

PORTABLE VIBRATION BLASTING MonITOR TYPE-TX

Fungsi untuk mengukur seberapa besar getaran tanah yang ditimbulkan karena ledakan dari pertambangan

dan ledakan batuan.

Specification :
▪	Number of Channel	:	3 channel
▪	Sample rate	:	2048 SPS
▪	Frequency range	:	2 ~ 250 Hz (ISEE)
		:	1 ~ 315 Hz (din 45669-1)
▪	Trigger mode	:	Automatic
▪	FFT Calculation	:	Computer
▪	Data transfer modes	:	SD Card
▪	Data Visualization	:	Screen
▪	Screen	:	2,5" TFT color 320 x 240 pixels
▪	Keyboard	:	2 keys
▪	Data storage memory	:	500 records
▪	Intenal power supply	:	Li-Ion rechargeable battery
▪	Dimensions	:	200 x 100 x 40 mm
▪	Weight (Without accessories)	:	± 0,5 kg
▪	Environmental	:	IP-65

▪	Complete Unit	:	Recording unit
		:	One three-axis bloks geophones
		:	Three spikes for fixation
		:	External power supply
		:	Analysis program
		:	User Manual
		:	Certificate Calibration
		:	Carrying case
