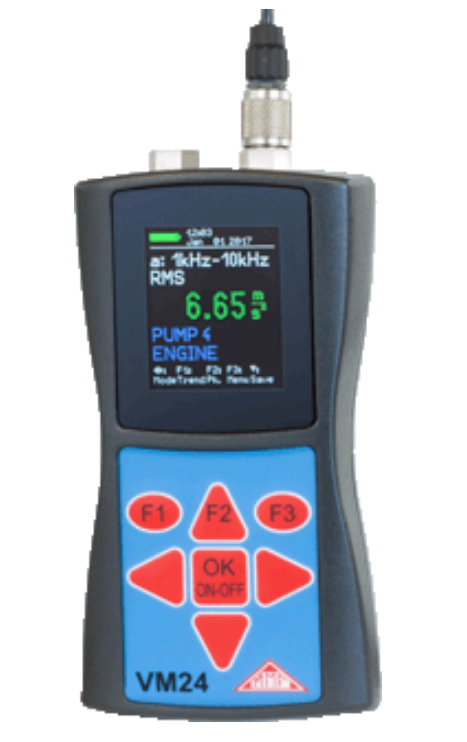

PORTABLE VIBRATION METER VM-24

Produk Lain

Detail Produk

Fungsi : Alat ukur getaran mesin.

Spesifikasi :
1 Main Unit
▪ Accelerometer	:	0,1 - 240 m/s²; 0,2 Hz - 10 kHz;
		3 Hz - 1 kHz, 1 kHz - 10 kHz
▪ Velocity	:	0,1 - 1000 mm/s;
		2 - 300 Hz; 10 - 1000 Hz
▪ Displacement	:	0,01 - 60 mm; 2 - 300 Hz
▪ Bearing Diagnosis Coefficient	:	1 - 10 kHz; with memory
		1 - 10 kHz; with memory
		for 1600 rms/peak start values
▪ Accuracy Vibration	:	± 5 % ± 2 Digits
▪ Data Memory	:	16000 values; USB interface
		optional PC software for data
▪ Display	:	OLED graphical display;
		colored; 128 x 160 pixels
▪ Power Supply	:	3 x LR03 / HR03 / AAA
		8 - 12 h; USB supply
▪ Dimension/weight	:	125mm x 65mm x27mm; 140g
		with battre and without sensor

2 Accelerometer
▪ Type	:	Piezoelectric shear
		accelerometer with low
		-power IEPE output; M12
		connector;integral magnet,
		VMID read contact in base
▪ Sensitive	:	3,5 mV/ms-2
▪ Transverse sensitivity	:	< 5 %
▪ Dimensions, weight	:	Ø 21, Height 34mm
		(without connector 53 g)

3 Accessories	:	Vibration sensor with spiral cable
	:	USB cable
	:	Instruction manual
	:	Plastic case
