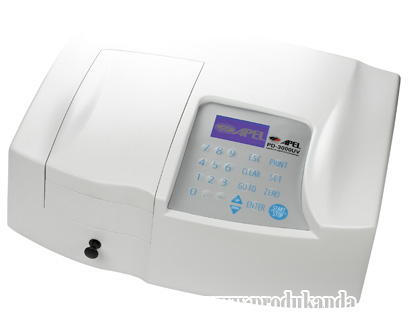

SPECTROPHOTOMETER UV-VIS - PD-3000UVe

Produk Lain

Detail Produk

Fungsi : Alat menganalisa bahan absorbensi panjang gelombang dengan cahaya (photometeric).

Spesifikasi Alat :
▪ Wavelength range	: 190 nm to 1000 nm
▪ Wavelength Width	: 5 nm
▪ Wavelength accuracy	: ± 2 nm
▪ Wavelength Scale	: 1nm scale (readable)
▪ Wavelength repeatability	: ± 0.5 nm
▪ Optical system	: Single beam, grating system,
	1200 lines/mm
▪ Stray light	: < 0.2%T
▪ Display	: 128 x 64 LCD display
▪ Photometric range	: -0.3 to 3 ABS
	: 0.0 to 200 %T
	: 0.0 to 9999 C (0 - 9999F)
▪ Drift	: <0.002A
▪ Detector	: Silicon photocell
▪ Light source	: Tungsten Halogen lamp, Deuterium lamp
▪ Auto Zero	: Equipped
▪ Standard Sample holder	: 4 position, 10mm x 10mm Square cuvette
▪ Printer interface	: Parallel port
▪ Data output	: USB
▪ Power Requirement	: 220 VAC, 50/60 Hz
▪ Dimensions (Body)	: 466 (W) x 395 (D) x 185 (H) mm
▪ Weight	: Net 16 kg (main body)
Complete Unit :
▪ Square glass cuvette	: 4 pcs
▪ Square quartz cuvette	: 2 pcs
▪ Power cord	: 1 pc
▪ Software CD-ROM	: 1 set (CD, USB key, USB Cable, Software manual)
▪ Fuse (1A)	: 1 pc
▪ Dust cover	: 1 pc
▪ Operation manual	: 1 copy
