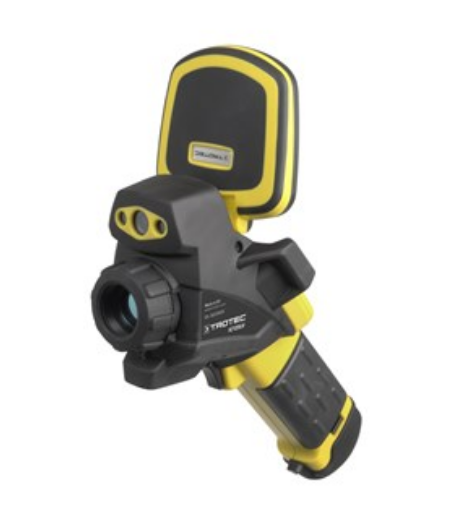

THERMAL IMAGING CAMERA IC125LV | INFRARED CAMERA Produk ALAT MONITORING LINGKUNGAN PERDAGANGAN

THERMAL IMAGING CAMERA IC125LV | INFRARED CAMERA

Dapatkan Spesifikasi Harga THERMAL IMAGING CAMERA IC125LV | INFRARED CAMERA Produk Terbaik dari ALAT MONITORING LINGKUNGAN PERDAGANGAN

THERMAL IMAGING CAMERA IC125LV | INFRARED CAMERA

Fungsi: alat ukur suhu dengan sinar infrared yang dilengkapi kamera.

Specification :
▪ Temperature range	: -20 °C to +1500 °C
▪ Accuracy	: ± 2 °C, ± 2 % of the measurement value
▪ Detector type	: focal plane array (FPA), uncooled microbolometer
▪ Detector resolution	: 384 x 288 Pixel
▪ Spectral range	: 7.5 to 14 µm
▪ Field of vision (FOV)	: 24° x 18°
▪ Geometrical resolution	: 1.1 mrad
▪ Thermal sensitivity	: ≤ 0.08 °C with 30 °C
▪ Display refresh rate	: 50 / 60 Hz
▪ Focus /min. focus distance	: manual / 0.5 m
▪ Display	: 3.5 inches touch LCD, capacitive
▪ Laser type	: semiconductor AlGalnP diode laser class 2, 1 mw/635 nm red
▪ Battery type	: standard Li-Ion, rechargeable, replaceable
▪ Operating time	: ≈ 3 h
▪ Power supply operation	: 8 – 11 V DC
▪ Operating temperature	: -20 °C to +50 °C
▪ Storage temperature	: -40 °C to +70 °C
▪ Air moisture	: 10% to 95% room humidity /non condensing)
▪ Protection class	: IP 54 IEC 529
▪ Shockproof	: 25G IEC 68-2-29
▪ Vibrationproof	: 2G IEC 68-2-6
▪ Dimensions	: 230 x 80 x 195 mm
▪ Weight	: 650 g
▪ Interface	: USB 2.0, Bluetooth, analog video (PAL/NTSC)

Complet unit :

▪ IC125 LV with standard lens, touch display and laser

▪ Battery charger 110/230 Volt

▪ Li-Ion battery

▪ Video cable

▪ USB cable for picture download to your PC workplace

▪ Operating manual

▪ Carrying case

▪ Software package

▪ Temperature test certificate

▪ MiniSD removable storage card
