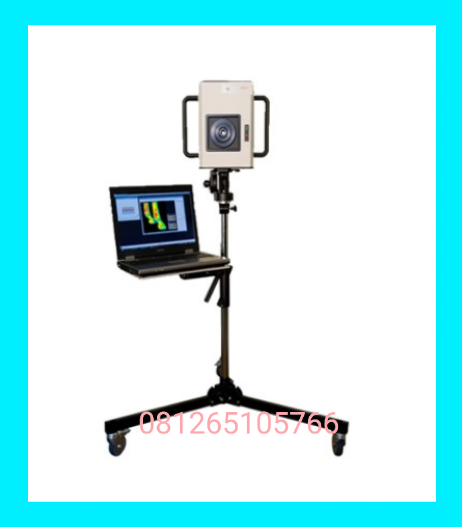

THERMAL SCANNER IRIS-380 | FEVER SCREENING

Produk Lain

Detail Produk

Fungsi: alat deteksi suhu tubuh manusia pada umumnya ditempatkan di Bandara pintu masuk kedatangan

orang dari negara lain, untuk mendeteksi Virus SARs, Avian Flu/ Epidemic Screening/ Swine Influenza A/ H1N1

dan Virus Ebola.

Specification :
▪	Temp. Detection Applications	:	SARS / Avian Flu / Epidemic Screening / Swine Influenza A/H1N1
		:	Temperature Sceening
		:	Threshold Temperature Detection
		:	Temperature Alarm Application
▪	Detector	:	Focal Plane Array, Uncooled (25µm x 25µm)
▪	Spectral range	:	7-13µm
▪	Optical resolution (IR)	:	380 x 280 pixels
▪	frame rate	:	Up to 80 Hz
▪	Thermal sensitivity	:	0.04 K
▪	Temperature sensitivity	:	0.01°C. (comparative Δ)
▪	Temperature range	:	in medical specification 17°C to 38°C
		:	(scalable via software): -20°C - 250°C. Auto
		:	Ambient correction.
▪	Optics	:	29° x 22° 18.7 mm or 38° x 29° 15 mm or
		:	13° x 10° 41 mm or 53° x 40° 10.5 mm.
▪	Accuracy	:	(absolute temperature) ±2°C or ±2%.
		:	Accuracy: (comparative Δ) 0.01°C
▪	PC interface	:	USB 2.0 or 3.0
▪	Ambient temperature	:	0°C to 70°C
▪	Storage temperature	:	-40°C to 70°C
▪	Relative humidity	:	20 - 80%, non condensing
▪	Enclosure size	:	55 mm x 150 mm x 250 mm
▪	Weight	:	1020 g (2lb 4oz)
▪	Shock / vibration	:	25G, IEC 68-2-29 / 2G, IEC 68-2-6
▪	Power supply	:	USB powered. PC, Laptop or
		:	Tablet running Windows.
		:	WinTES3 camera control and analysis software.

▪	Perlengkapan :	:	Camera Stand
		:	Sliding Arm Adapter
		:	USB Extender
		:	Cable
		:	Wall Bracket for Camera
		:	Tilt Correticon Plate
		:	Rechargeable power supply
		:	Software and PC
