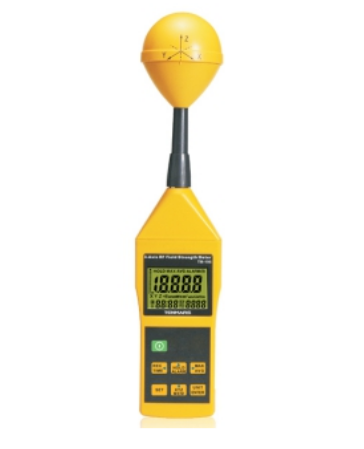

TM-196 RF METER | RADIO FRECUENCY FIELD STRENGTH METER

Produk Lain

Detail Produk

Fungsi: alat untuk mengukur kekuatan radiasi frekuensi medan elektromanetik radio.

Application:

1. RF power measurement for transmitters.

2. High frequency(RF)electromagnetic wave field strength measurement.

3. Mobile phone base station antenna radiation power density measurement.

4. Wireless bug finder.

5. Wireless communication (CW, TDMA, GSM, DECT) applications.

6. Wireless LAN (Wi-Fi) detection, installation.

7. Cellular /Cordless phone radiation safety level.

8. Microwave oven leakage detection.

9. Personal living environment EMF safet

Specification:
▪ Sensor	: Triple Axis (X, Y, Z).
▪ Ranges	: 38mv to 11v/m
▪ Display	: 3-3/4 digits maximum reading 3999
▪ Frequency range	: 10MHz ~ 8GHz
▪ Measurement units	: mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2
▪ Display resolution	: 0.1mV/m, 0.1µA/m, 0.001µW/m2, 0.001µW/cm2
▪ Manual data memory	: Read storage: 200 data sets.
▪ Alarm function	: Adjustable threshold with ON/ OFF
▪ Memory Recall	: Records Maximum & AVG
▪ Calibration factor CAL	: adjustable
▪ Sampling Time	: 2.5 times per second.
▪ Operating Temperature/RH	: 0 to 50ºC ( 32ºF to 122ºF ). Max. 80% RH.
▪ Power Supply	: 9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1
▪ Battery life	: approx. 5 hrs.
▪ Weight	: approx. 180g
▪ Size	: 380(L)80(W)77(H) mm.

▪ Accessories	: Instruction manual and
	: Hard carrying case
