Triaxial Vibration Meter | Building Vibration Meter | VM-40C Produk Terbaik dari
ALAT MONITORING LINGKUNGAN PERDAGANGAN
Detail Produk

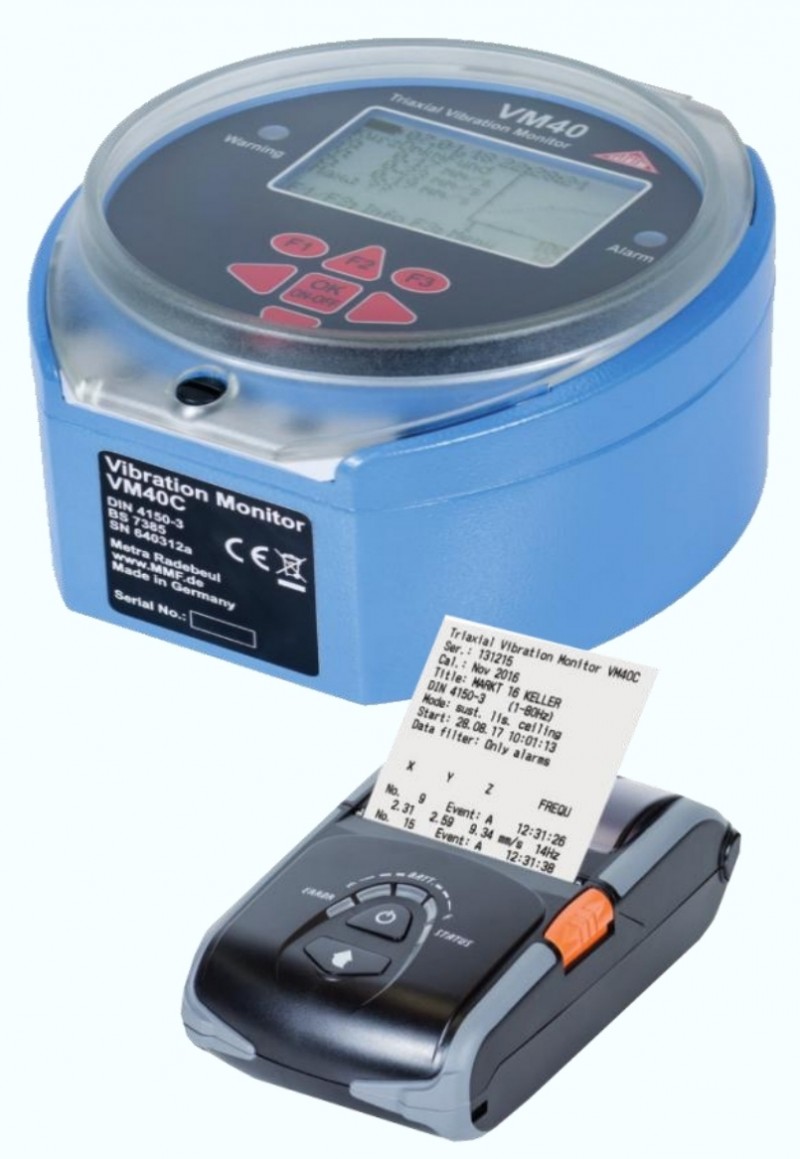

Triaxial Vibration Meter | Building Vibration Meter | VM-40C
| |
| Fungsi : Alat ukur Getaran terhadap gedung |
| |
| Spesifikasi Alat : |
|
|
| ▪ |
Standard |
: |
DIN 4150-3, BS 7385, SN 640312a |
| ▪ |
Tranduser |
: |
Triaxial piezoelectric shear type accelerometer |
| ▪ |
Measuring range |
: |
Acceleration : 0.01 - 15 m/s² |
| |
|
: |
Velocity : 0.01-2400 mm/s at 1 Hz 0.1-30 mm/s at 80 Hz |
| ▪ |
Frequency range |
|
0.8 - 100 Hz |
| |
|
: |
0.8 - 395 Hz |
| |
|
: |
5 - 150 Hz |
| ▪ |
Display |
: |
LCD with backlight, 128 x 64 pixel, 32 x 60mm² |
| ▪ |
Display data |
: |
3 peak/ pp values (X / Y / Z) |
| ▪ |
Data storage |
: |
max 100.000 data |
| ▪ |
Celuler com. |
: |
4G (LTE B3, B8, B20) |
| |
|
: |
2G (E-GSM-900, DCS-1800) |
| ▪ |
USB connection |
: |
USB 2.0 full speed via 8 pin connector |
| ▪ |
PC-Software |
: |
Free software tool for archiving and report |
| ▪ |
Protection Grade |
: |
IP67 EN 60529 |
| ▪ |
Dimension/weight |
: |
150 x 140 x 80mm / 2 kg |
| ▪ |
Accessories |
: |
Battre Charge |
| |
|
: |
USB Cable VM2x-USB |
| |
|
: |
Tripod floor plate |
| |
|
: |
2G/4G celluler modem |
| |
|
: |
Mobile report printer with battery |
| |
|
: |
Alarm Beacon with batteries |
| |
|
: |
Seismic sensitivy 100 mV/g ± 5% |
| |
|
: |
USB interface for 2 channel 0.3 to 2000 Hz |
| |
|
: |
Analyzer software instrument, only acceleration |
| |
|
: |
Vibration swith RMS/ peak / FFT Monitoring |
