TSS METER-INSITE-IG 3150-20L

Produk Lain

Detail Produk

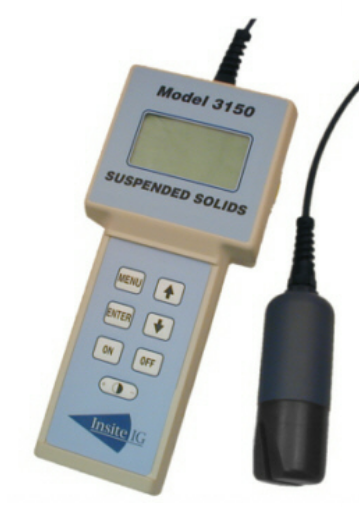

TSS METER-INSITE-IG 3150-20L-PORTABLE TOTAL SUSPENDED SOLID METER

Fungsi : Alat ukur zat padat yang tesuspensi dalam air berupa bahan organik dan inorganik yang tertahan

oleh saringan dengan ukuran partikel maksimal 2μm

Spesifikasi :
▪	Measuring range	:	0 ~ 1,500 mg/l
▪	Accuracy	:	3% of reading or 20 mg/l
▪	Sensitivity	:	1 mg/l bellow 1000 mg/l
			10 mg/l between 1,000 and 9,999 mg/l
			100 mg/l above 10,000 mg/l
▪	Repeatability	:	+/- 0,5%
▪	Sensor Drift	:	Less than 1% per year
▪	Temp. Range	:	o to 65 degrees C
▪	Sensor Check	:	Automatic self diagnostics
▪	Output	:	RS-232 serial
▪	Memory Backup	:	Yes
▪	Display	:	LCD graphic display with UV protection
			Contrast adjustment via keypad
			on demand backlighting
▪	Cable length	:	20 feet
▪	Ambient temp.	:	-40 ˚C to 55 ˚C
▪	Ambient R/H	:	0 to 100 %
▪	Enclosure Rating	:	NEMA 4X
▪	Wetted Materials	:	Epoxy and polyurethane
▪	Max. Pressure	:	100 psi
