| Specification : |
|
| A. Wide Range of Applications |
: Waste water pipes of Ø 40 mm and larger |
| |
: Ventilation lines of Ø 40 mm and larger |
| |
: Inspect hollow spaces; e.g. in front-wall installations |
| |
: Flue gas lines up to approx. Ø 125 mm |
| |
|
| B. Monitor |
|
| ▪ Dimension housing |
: 176 x 114 x 32 mm |
| ▪ TFT display |
: 7" / 16:9 format |
| ▪ Video out |
: RCA Signal |
| ▪ Weight |
: 400 g |
| ▪ Power supply |
: Space for 2 rechargeable batteries |
| |
each 12 v or via power pack |
| ▪ Battery operation time |
: Max 2 rechargeable batteries, each 120 mins |
| |
|
| C. Miniature camera head, color Φ 26 mm |
|
| ▪ Type |
: 1/3" Color CMOS |
| ▪ Resolution |
: 420 lines |
| ▪ Pixels |
: 768 x 576 (PAL), 656 x 492 (NTSC |
| ▪ Light sensitivity |
: 0.5 Lux |
| ▪ Lens |
: f = 2.3 mm, F = 2.5 |
| ▪ Light source |
: 12 white LEDs |
| ▪ Degree of protection |
: Waterproof to IP 67 |
| ▪ Dimensions / weight |
: Ø 26 x 38 mm/ 240g |
| |
|
| D. Distance measurement : |
|
| ▪ Unit |
: Electronic meter counter |
| |
|
| E. Plastic case |
|
| ▪ Dimensions / weight |
: 51 x 43 x 17 cm / 7 kg |
| |
|
| F. Memory |
|
| ▪ Recording |
: 4 GB SD card (5 h recording capacity) |
| ▪ Interface |
: Mini USB port |
| |
|
| G. Locator sender |
|
| ▪ Transmitter frequency |
: 8,9 kHz |
| |
|
| H. Locator Receiver |
|
| ▪ Display |
: Graphic visualization of transmitted position |
| |
: Output impedance Headphones 32 Ohm |
| ▪ Power supply |
: 3.7 V Li-Ion rechargeable battery |
| ▪ Dimension / weight |
: 32 x 14 x 7 cm / 605 g |
| |
|

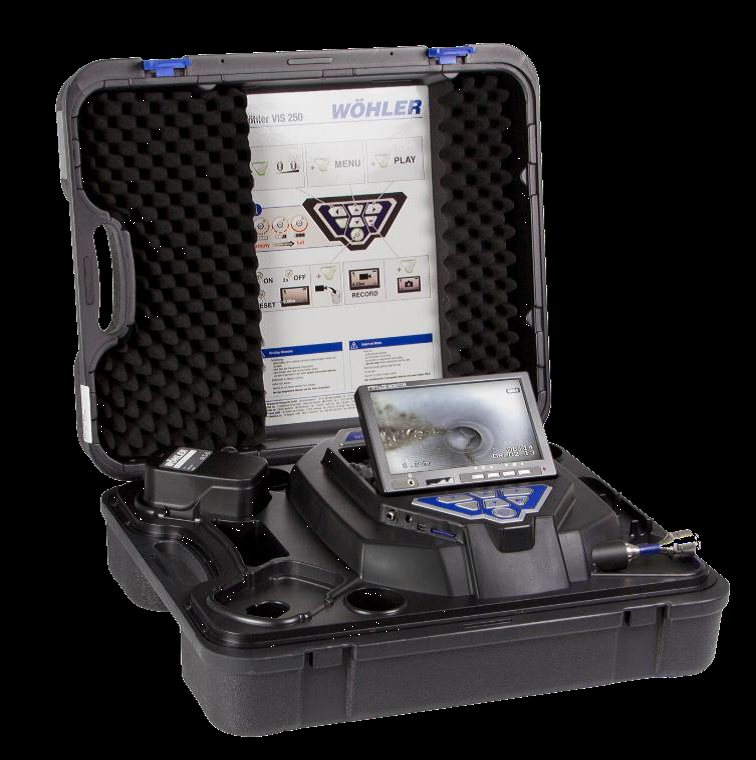

| I. Complete unit |
|
| - Camera |
|
| - Color camera head Φ 26mm |
|
| - TFT monitor 7", 2m cable |
|
| - Push rod Φ 6mm |
|
| - Digital meter counter |
|
| - 1 anti slide mat |
|
| - 1 NiMH battery and charger |
|
| - Plastic case |
|
| - Photo and video record |
|
| - Level indicator |
|
| - Video setting |
|
| - 20mm push rod |
|
| - Manual books |
|
