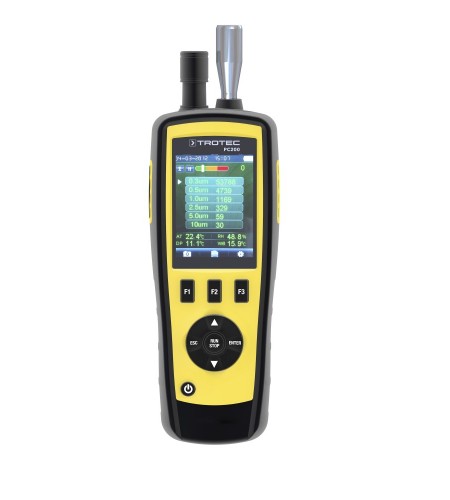

Perbesar Gambar| Fungsinya: Alat Pengukur Particulate debu dalam ruangan, sebagai pengujian kualitas udara dalam ruangan, |
| pengujian kebocoran partikel udara. |
| Spesifikasi : | |||
| ▪ | 6 Channel | : | 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm |
| ▪ | Counting Mode | : | Concentration, Cumulative, Diffrential |
| ▪ | Counting Eficiency | : | 50% at 0.3 μm; 100% for particles > 0.45 μm |
| ▪ | Flow rate | : | 2.83 l/min (0.1 ft³/min), |
| controlled by internal pump | |||
| ▪ | Light source | : | Laser class 3B, wave length 780 nm, 90 mW |
| ▪ | Isokinetic probe | : | Isokinetic probe |
| ▪ | Data storage | : | 5,000 data records on the internal flash memory |
| ▪ | Display | : | 2.8 inch colour LCD display, 320 x 240 pixels |
| ▪ | Function | : | Maximum, minimum and average display |
| measured value hold function, alarm function, | |||
| language selection, °C/°F switch. | |||
| ▪ | Power Supply | : | Battery type: NiMH battery |
| ▪ | Dimension | : | L x W x H: 57 x 75 x 240 mm / 570g |
| ▪ | Complete Unit | : | Main Unit, Mini Tripod, Zero filter and connection |
| hose, Battery charger, USB cable and | |||
| Software, Manual books, Certificate Calibration, | |||
| Carrying case | |||
