| Spesifikasi : |
|

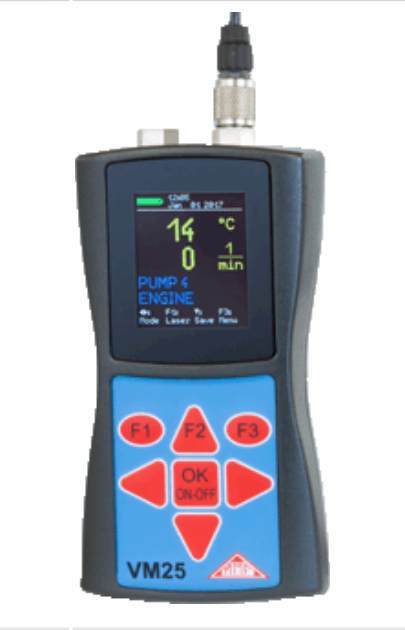

| 1. Main Unit |
|
| - Vibration Accelerometer |
: 0,1 - 240 m/s²; 0,2 Hz - 10 kHz; 3 Hz - 1 kHz, |
| |
1 kHz - 10 kHz |
| - Vibration velocity |
: 0,1 - 1000 mm/s; |
| |
2 - 300 Hz; 10 - 1000 Hz |
| - Vibration Displacement |
: 0,01 - 60 mm; 2 - 300 Hz |
| - Bearing Diagnosis Coefficient |
: 1 - 10 kHz; with memory for |
| |
1600 rms/peak start values |
| - Accuracy Vibration |
: ± 5 % ± 2 Digits |
| - Rotation speed messurement |
: 1 - 9999 rpm; optical |
| - Temperature measurement |
: -40 - 125 °C ± 2 K; infrared |
| - Frequency analysis |
: 125 lines FFT ; acceleration; |
| |
6 frequency ranges 0 to 11712 Hz |
| - Headphone output |
: 3.5 mm via adapter VM2x-HP; volume control |
| - Data Memory |
: 16000 values; USB interface; |
| |
optional PC software for data and measuring |
| |
point management |
| - Display |
: OLED graphical display; |
| |
colored; 128 x 160 pixels |
| - Power Supply |
: 3 x LR03 / HR03 / AAA batteries or NiMH |
| |
accumulators; operating time 8 - 12 h; |
| |
USB supply |
| - Operating Temp.Range |
: -4 .. 140 °F, < 95 % relative humidity, |
| |
no condensation |
| - Dimension/weight |
: 125 mm x 65 mm x 27 mm; |
| |
140 g with batteries and without sensor |
| |
|
| 2. Accelerometer |
: Piezoelectric shear accelerometer with |
| - Type |
low-power IEPE output; M12 connector;integral |
| |
magnet, VMID read contact in base |
| - Sensitive |
: 3,5 mV/ms-2 |
| - Transverse sensitivity |
: < 5 % |
| |
|
| 3. Accessories |
|
| - Instrument (Main Unit) |
|
| - Vibration sensor with spiral cable |
|
| - headphone adapter |
|
| - USB cable |
|
| - Instruction manual |
|
| - Plastic case |
|
