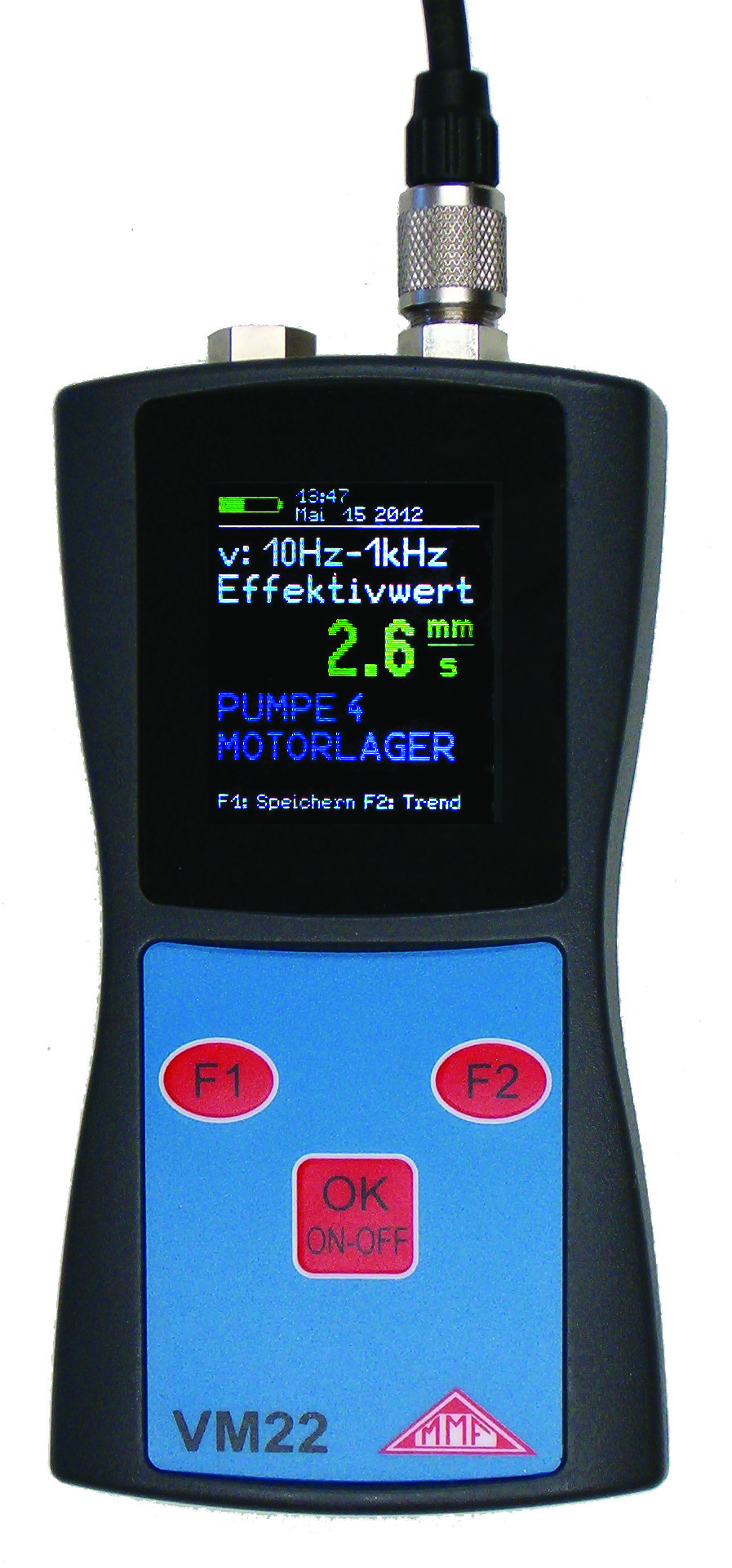

Perbesar Gambar| Fungsi : Alat ukur getaran mesin. |
| Sepsifikasi : | |
| 1. Main Unit | |
| ▪ Vibration velocity | : 0,1 - 1000 mm/s; 10 - 1000 Hz |
| ▪ Accuracy Vibration | : ± 5 % ± 2 Digits |
| ▪ Data Memory | : 16000 values; USB interface |
| optional PC software for data | |
| and measuring point | |
| management | |
| ▪ Display | : OLED graphical display; |
| colored; 128 x 160 pixels | |
| ▪ Power Supply | : 3 x LR03 / HR03 / AAA |
| batteries or NiMH | |
| ▪ Dimension/weight | : 125mm x 65mm x27mm; 140g |
| with batteries and without | |
| sensor | |
| 2. Accelerometer | |
| ▪ Type | : Piezoelectric shear |
| accelerometer with low | |
| -power IEPE output; M12 | |
| onnector;integral magnet, | |
| VMID read contact in base | |
| ▪ Sensitive | : 3,5 mV/ms-2 |
| ▪ Dimensions, weight | : Ø 21, Height 34mm |
| (without connector 53 g) | |
| 3. Accessories | : Vibration sensor |
| : USB cable | |
| : Instruction manual | |
| : Plastic case |
