| Spesifikasi Alat : |
| a. |
Pompa Penghisap |
|
Pump KNF VAC, 15 Lpm |
|
Diagram Vacuum pump |
|
Free flow 15 lpm, ryton head, EPDM Diaphragm and vales 230v |
| b. |
Gas Meter |
|
Qmax : 2.5 m3/h |
|
Qmin : 0.016 m3/h |
|
Sensitive flow rate : 0.003 m3/h |
|
Pmax : 10 kPa |
|
Max index vol : 9999 m3 |
| c. |
Nosel |
|
Nozel Set Stainless Steel |
|
Size : 6mm, 8mm, 10mm |
| d. |
Probe |
|
Linear Glass 36 inc, 8mm |
|
Pyrex liner with 12/5 Ball Joint |
| e. |
Tabung Pitot tipe S |
|
Pitot Tips Extend, SFA-47 SS |
|
Offset Replacement Pitot Tip 3/8" SS Extended for Use |
|
with method 5 Nozzle and SFA-47 |
| f. |
Filter |
|
Stainless Steel Adapter Filter Assembly 47mm, 5/8TU |
|
Method 17 SS in-Stack Filter unit, 5/8" tube union |
|
Uses 47mm diameter Filter Element |
|
Includes with Filter 47mm |
| g. |
Impinger Set |
|
Glass Impinger 25 mm (10pcs) |
|
Includes Stainless Steel Clamp adaptor and Box hold for impinger |
| h. |
Pipa pengambil contoh uji |
|
Stainless Steel Sheath Mini Probe Heated 3/4" dia x 36" Long |
|
Stainless Steel pipe probe 5/8" x 150mm (1pcs) |
|
Stainless steel pipe probe 3/8" x 150mm (1 pcs) |
| i. |
Pemanas |
|
In Heater probe 220 VAC, 0.9 meters with cables electical plug |
| j. |

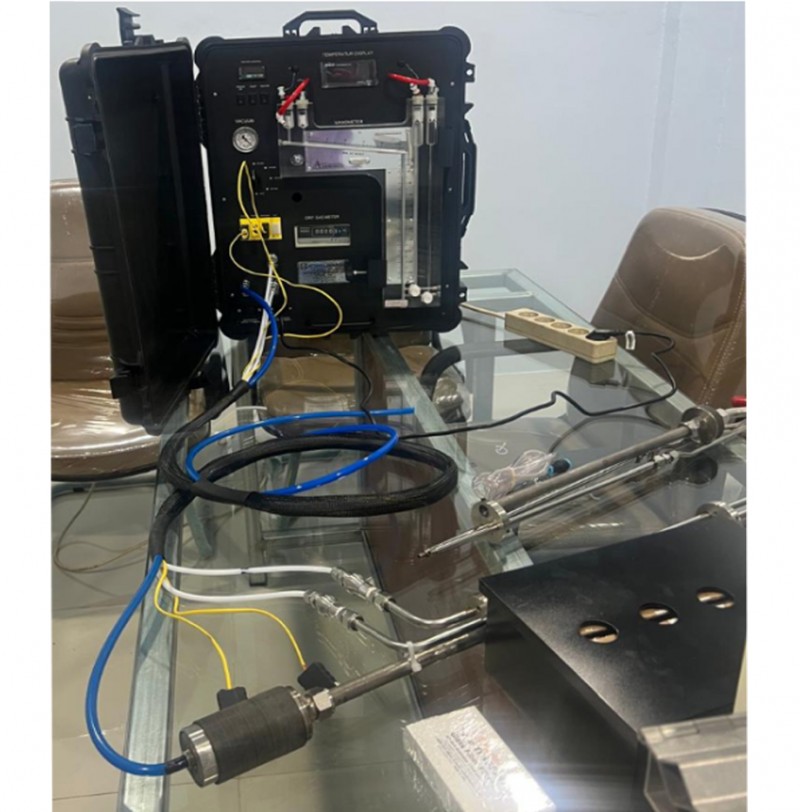

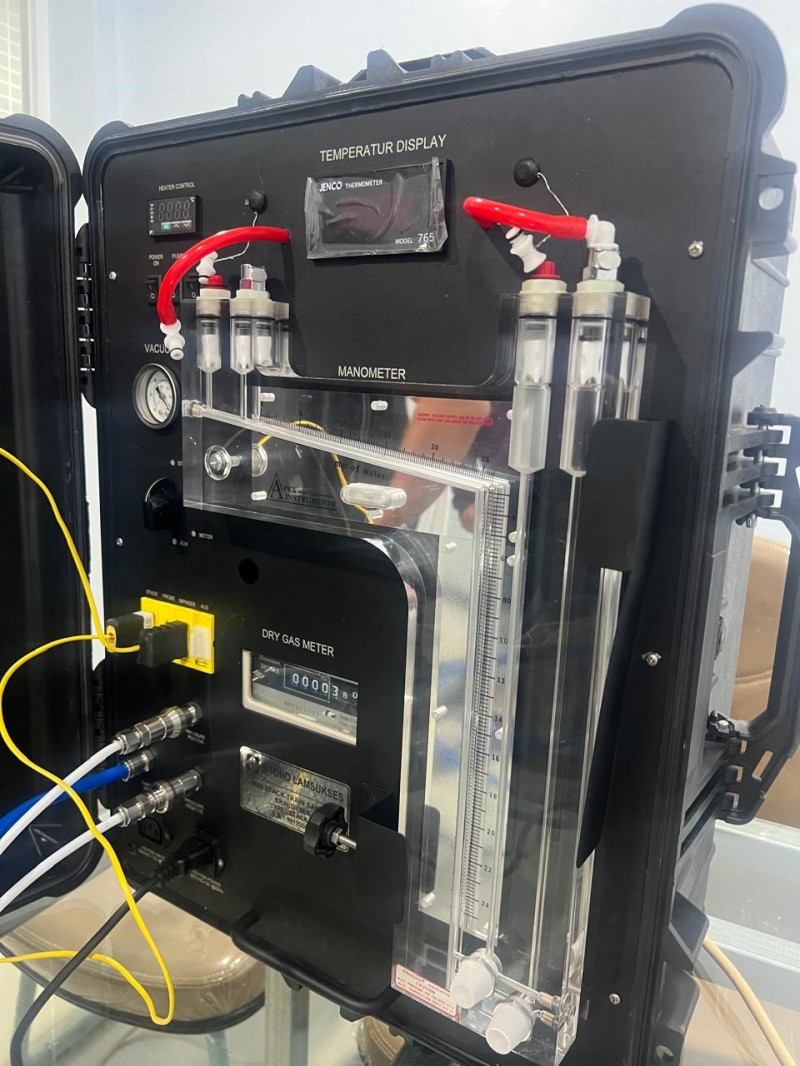

Komplit Unit : |
| ▪ |
Display, TC, PNL, LED 220v Jenco |
| ▪ |
10 feet Flexible Thermocouple Extention |
| ▪ |
Controller Novus Temp RED LED |
| ▪ |
Connector Ungrout 12/5 Sockets |
| ▪ |
Manometer Molded plastic range 0-80 mm red oil 826 sp gr |
| ▪ |
Swith TC 7 Channel |
| ▪ |
Gage minihelic, 0-100mm H2O |
| ▪ |
Quick Connect Bulkead 1/4 inch to 1/4 inch tube union female SS |
| ▪ |
Stainless steel tube union 3/8 inch |
| ▪ |
Flowmeter 1-20 liters with valve |
| ▪ |
Glass Fiber Filter Paper Diameter 47 mm (100 sheet/box) |
| ▪ |
Carrying Case |
