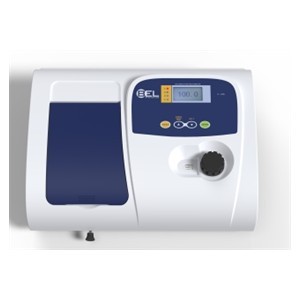

Perbesar Gambar| Fungsi: alat untuk menganalisa bahan absorbensi panjang gelombang dengan cahaya (photometric). |
| Specification : | |
| ▪ Wavelength range | : 200 ~ 1000nm |
| ▪ Band Width | : 2nm |
| ▪ Wavelength setting | : Auto |
| ▪ Wavelength Accuracy | : ±1nm |
| ▪ Photometric Display range | : 0~200%T, 0.3~3 DA, 0~9999C |
| ▪ Wavelength Repeatability | : 0,5nm |
| ▪ Stability | : 0,002A/h, 500nm |
| ▪ Photometric accuracy | : ±0,5%T |
| ▪ Stray Light | : ±0,3%T |
| ▪ Photometric Repeatability | : 0,3%T |
| ▪ Standard cell holder | : 4-position 10mm cell holder |
| ▪ Operating modes | : T, A, C, F |
| ▪ Display | : 128 x 64 Dots LCD |
| ▪ Lamps | : Deuterium Lamp & Tungsten |
| : Halogen Lamp | |
| ▪ Detector | : Silicon Photodiode |
| ▪ Data Output Port | : USB |
| ▪ Printer port | : Parallel |
| ▪ Power requirement | : 220v |
| ▪ Dimension/ weight | : 420 x 280 x 180mm / 15kg |
